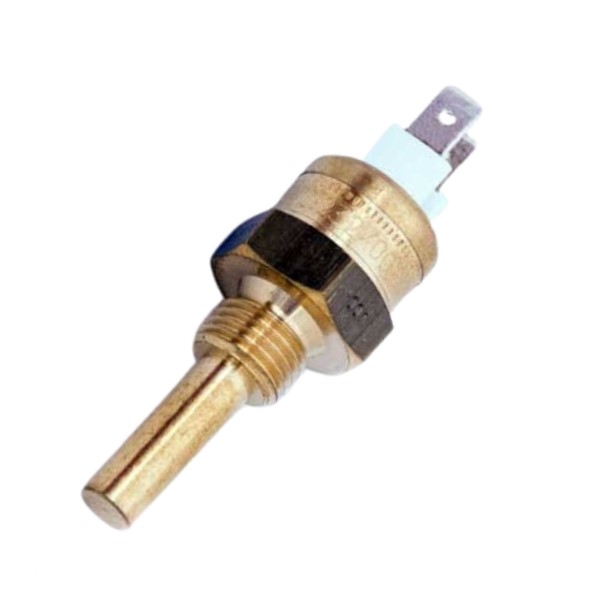

Picture of X10-232-001-001 - Temperature Switch - Switchpoint ON 64°C ±3°C Switchpoint OFF 60°C ±3°C - M14X1.5

X10-232-001-001 - Temperature Switch - Switchpoint ON 64°C ±3°C Switchpoint OFF 60°C ±3°C - M14X1.5

Manufacturer: Continental
Temperature Switch - Switchpoint ON 64°C ± 3°C Switchpoint OFF 60°C ± 3°C - Thread M14X1.5
SKU: X10-232-001-001
Manufacturer part number: X10-232-001-001
  • SKU : X10-232-001-001
  • Brand : Continental
  • Product Portfolio : Switches & Senders
  • Product Family : Switches
  • Product Group : Temperature Switches
  • Thread : M14 x 1.5
  • Temperature Switchpoint (ON) : 64°C ± 3°C
  • Temperature Switchpoint (OFF) : 60°C ± 3°C
  • Maximum Operating Temperature : 110°C
  • Pressure Switch : 2 Pole Insulated Return
  • Switch Function : Contact Closes When Temperature > 64°C
  • Contact Response : Slow
  • Temperature Switch Capacity : Maximum 120 Watt
  • Temperature Switch Connector : AMP Male 6.3 x 0.8mm (2x)
  • Switch Element Length + Thread (L) : 35.5mm
  • Sensor Diameter : 8mm
  • Operating Voltage : 6 - 24 V Dc
  • Weight 0.29kg
  • Supplementary Information : Replaces Part 232-030-003-043C
  • Warranty : 12 Months
