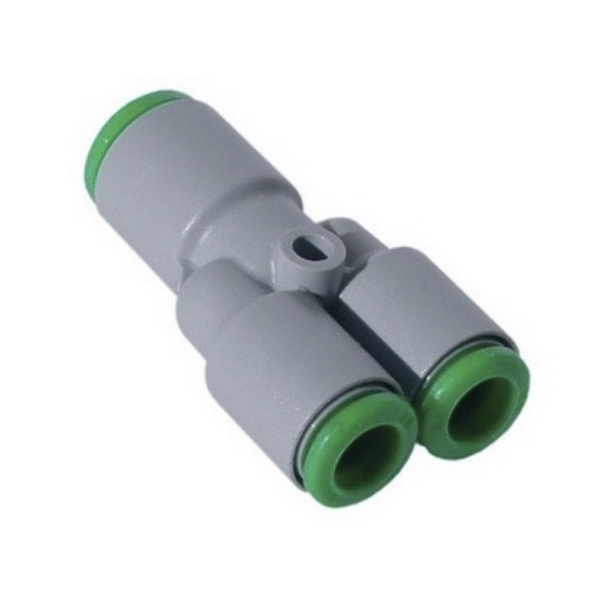

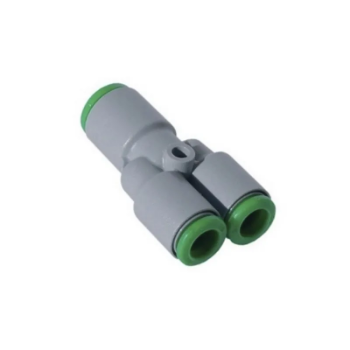

T230810 - Y-Piece - Push-in Fittings - 8mm Tube To 10mm Tube - Polymer

Name: T230810 - Y-Piece - Push-in Fittings - 8mm Tube To 10mm Tube - Polymer
SKU: T230810
Availability: InStock

Manufacturer: Pneumax

Y-Piece - Push-in Fittings - 8mm Tube To 10mm Tube - Polymer

SKU: T230810

Manufacturer part number: T230810

SKU : T230810
Brand : Pneumax
Product Portfolio : Pneumatics
Product Family : Fittings & Adaptors
Product Group : Push-in Fittings
Product Class : Push-In - Y-Piece
Family Code : T23
Join : Tube to Tube
Material : Polymer
From : 8mm Tube
To : 10mm Tube
Fluid : Compressed air
Suggested Tubes : TPU (Polyurethane), PA11/PA12 (Polyamide), TPE (Polyethilene), TPA (Polyurethane/Copolyester)
Applications : Pneumatic circuits, low pressure hydraulic applications, according to DIN 3861-3870 norms. Suitable for vacuum applications.
Protection Rating : IP68
Temperature & Pressure : Temperatures and pressures usually depend by the technical features of the employed tubes, anyway it is suggested a limit working pressure of 12 bar and a temperature range between -20°C and +50°C
Tube Tolerances : Diam. between 4 and 10 mm +/- 0,05 Diam. from 12 mm +/- 0,1
Warranty : 12 Months
