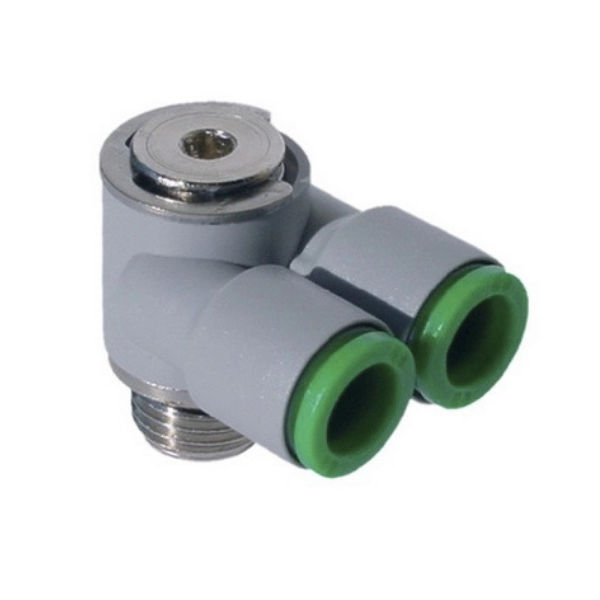

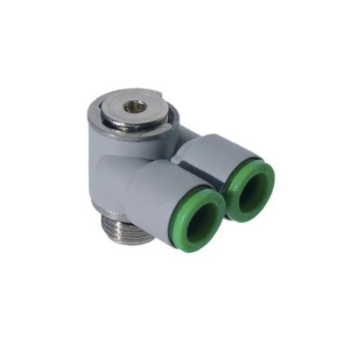

T15B0814 - Banjo Double - Push-in Fittings - 8mm Tube To 1/4" Male Thread - Polymer & Brass

Name: T15B0814 - Banjo Double - Push-in Fittings - 8mm Tube To 1/4" Male Thread - Polymer & Brass
SKU: T15B0814
Availability: InStock

Manufacturer: Pneumax

Banjo Double - Push-in Fittings - 8mm Tube To 1/4" Male Thread - Polymer & Brass

SKU: T15B0814

Manufacturer part number: T15B0814

SKU : T15B0814
Brand : Pneumax
Product Portfolio : Pneumatics
Product Family : Fittings & Adaptors
Product Group : Push-in Fittings
Product Class : Push-In - Banjo
Family Code : T15B
Join : Tube to Male Thread
Material : Polymer & Brass
From : 8mm Tube
To : 1/4" Male Thread
Fluid : Compressed air
Suggested Tubes : TPU (Polyurethane), PA11/PA12 (Polyamide), TPE (Polyethilene), TPA (Polyurethane/Copolyester)
Applications : Pneumatic circuits, low pressure hydraulic applications, according to DIN 3861-3870 norms. Suitable for vacuum applications.
Protection Rating : IP68
Temperature & Pressure : Temperatures and pressures usually depend by the technical features of the employed tubes, anyway it is suggested a limit working pressure of 12 bar and a temperature range between -20°C and +50°C
Tube Tolerances : Diam. between 4 and 10 mm +/- 0,05 Diam. from 12 mm +/- 0,1
Warranty : 12 Months
