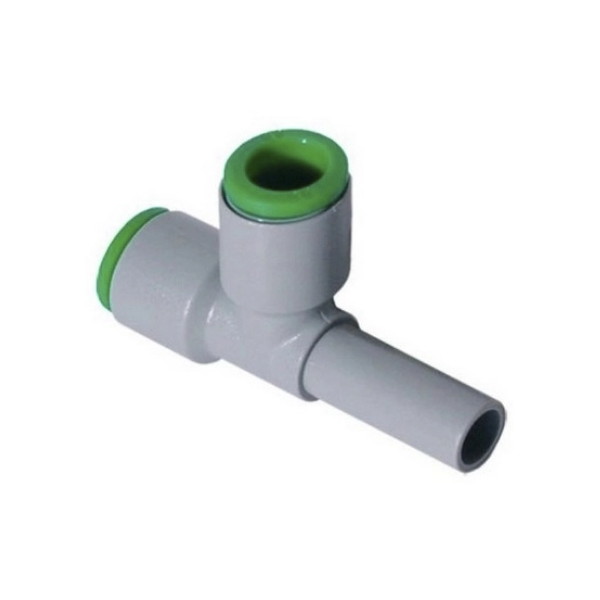

T0508V0 - Tee Piece Tube - Push-in Fittings - 8mm Tube To Stem with 8mm Tube Tee - Polymer & Brass

Name: T0508V0 - Tee Piece Tube - Push-in Fittings - 8mm Tube To Stem with 8mm Tube Tee - Polymer & Brass
SKU: T0508V0
Availability: InStock

Manufacturer: Pneumax

Tee Piece Tube - Push-in Fittings - 8mm Tube To Stem with 8mm Tube Tee - Polymer & Brass

SKU: T0508V0

Manufacturer part number: T0508V0

SKU : T0508V0
Brand : Pneumax
Product Portfolio : Pneumatics
Product Family : Fittings & Adaptors
Product Group : Push-in Fittings
Product Class : Push-In - Tee Piece
Family Code : T05V0
Join : Tube to Stem with Tube Tee
Material : Polymer & Brass
From : 8mm Tube
To : Stem with 8mm Tube Tee
Fluid : Compressed air
The pressure usually depend by the technical features of the employed tubes.Max pressure suggested 18 bar.
Suggested Tubes : TPU (Polyurethane), PA11/PA12 (Polyamide), TPE (Polyethilene), TPA (Polyurethane/Copolyester)
Applications : Pneumatic circuits, low pressure hydraulic applications, according to DIN 3861-3870 norms. Suitable for vacuum applications.
Protection Rating : IP68
Temperature & Pressure : Temperatures and pressures usually depend by the technical features of the employed tubes, anyway it is suggested a limit working pressure of 12 bar and a temperature range between -20°C and +50°C
Tube Tolerances : Diam. between 4 and 10 mm +/- 0,05 Diam. from 12 mm +/- 0,1
Warranty : 12 Months
