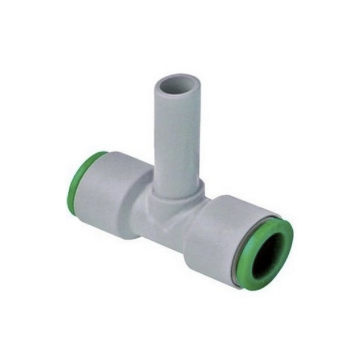

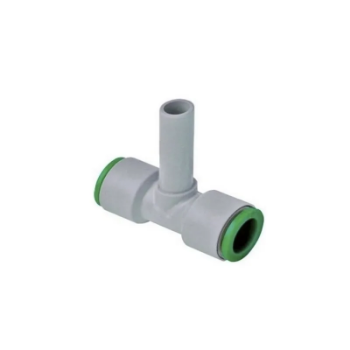

T0506L0 - Tee Piece Stem - Push-in Fittings - 6mm Tube To Tube with 6mm Stem Tee - Polymer & Brass

Name: T0506L0 - Tee Piece Stem - Push-in Fittings - 6mm Tube To Tube with 6mm Stem Tee - Polymer & Brass
SKU: T0506L0
Availability: InStock

Manufacturer: Pneumax

Tee Piece Stem - Push-in Fittings - 6mm Tube To Tube with 6mm Stem Tee - Polymer & Brass

SKU: T0506L0

Manufacturer part number: T0506L0

SKU : T0506L0
Brand : Pneumax
Product Portfolio : Pneumatics
Product Family : Fittings & Adaptors
Product Group : Push-in Fittings
Product Class : Push-In - Tee Piece
Family Code : T05L0
Join : Tube to Tube with Stem Tee
Material : Polymer & Brass
From : 6mm Tube
To : Tube with 6mm Stem Tee
Fluid : Compressed air
The pressure usually depend by the technical features of the employed tubes.Max pressure suggested 18 bar.
Suggested Tubes : TPU (Polyurethane), PA11/PA12 (Polyamide), TPE (Polyethilene), TPA (Polyurethane/Copolyester)
Applications : Pneumatic circuits, low pressure hydraulic applications, according to DIN 3861-3870 norms. Suitable for vacuum applications.
Protection Rating : IP68
Temperature & Pressure : Temperatures and pressures usually depend by the technical features of the employed tubes, anyway it is suggested a limit working pressure of 12 bar and a temperature range between -20°C and +50°C
Tube Tolerances : Diam. between 4 and 10 mm +/- 0,05 Diam. from 12 mm +/- 0,1
Warranty : 12 Months
