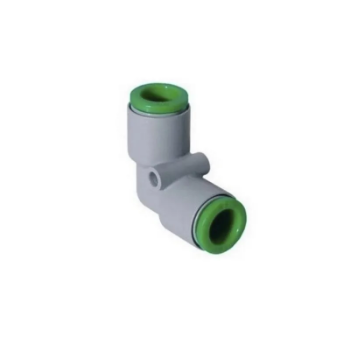

Picture of T0410L0 - Elbow - Push-in Fittings - 10mm Tube To 10mm Stem - Polymer & Brass

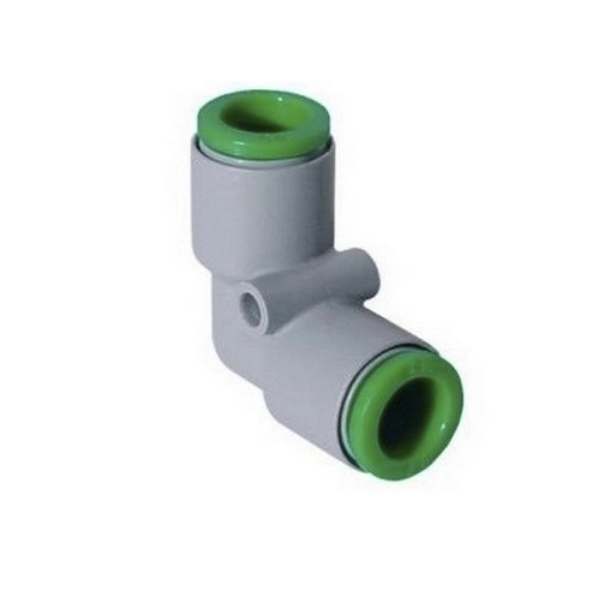

T0410L0 - Elbow - Push-in Fittings - 10mm Tube To 10mm Stem - Polymer & Brass

Manufacturer: Pneumax
Elbow - Push-in Fittings - 10mm Tube To 10mm Stem - Polymer & Brass
SKU: T0410L0
Manufacturer part number: T0410L0
  • SKU : T0410L0
  • Brand : Pneumax
  • Product Portfolio : Pneumatics
  • Product Family : Fittings & Adaptors
  • Product Group : Push-in Fittings
  • Product Class : Push-In - Elbow
  • Family Code : T04L0
  • Join : Tube to Stem
  • Material : Polymer & Brass
  • From : 10mm Tube
  • To : 10mm Stem
  • Fluid : Compressed air
  • The pressure usually depend by the technical features of the employed tubes.Max pressure suggested 18 bar.
  • Suggested Tubes : TPU (Polyurethane), PA11/PA12 (Polyamide), TPE (Polyethilene), TPA (Polyurethane/Copolyester)
  • Applications : Pneumatic circuits, low pressure hydraulic applications, according to DIN 3861-3870 norms. Suitable for vacuum applications.
  • Protection Rating : IP68
  • Temperature & Pressure : Temperatures and pressures usually depend by the technical features of the employed tubes, anyway it is suggested a limit working pressure of 12 bar and a temperature range between -20°C and +50°C
  • Tube Tolerances : Diam. between 4 and 10 mm +/- 0,05 Diam. from 12 mm +/- 0,1
  • Warranty : 12 Months
