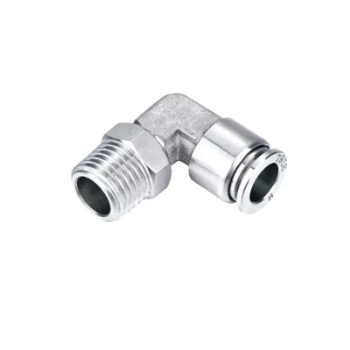

Picture of SSL06-02 - Elbow Male - Stainless Steel Fitting - 6mm Tube To 1/4" Male Thread - Stainless Steel

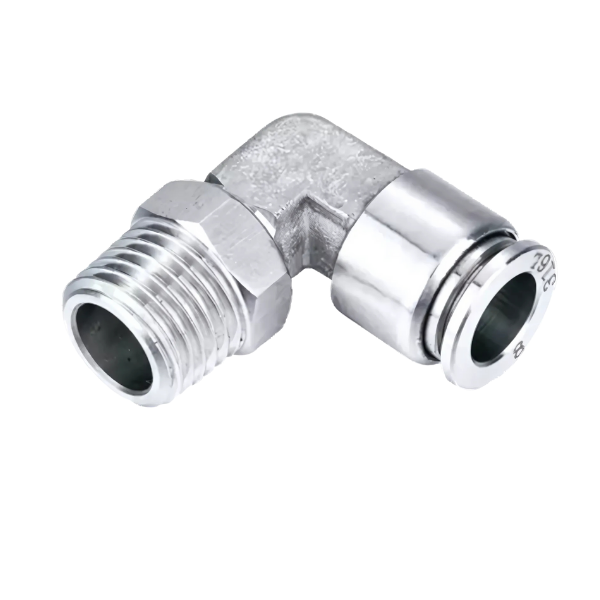

SSL06-02 - Elbow Male - Stainless Steel Fitting - 6mm Tube To 1/4" Male Thread - Stainless Steel

Manufacturer: Isaiah
Elbow Male - Stainless Steel Fitting - 6mm Tube To 1/4" Male Thread - Stainless Steel
SKU: SSL06-02
Manufacturer part number: SSL06-02
  • SKU : SSL06-02
  • Brand : Isaiah
  • Product Portfolio : Pneumatics
  • Product Family : Fittings & Adaptors
  • Product Group : Stainless Steel Fittings
  • Product Class : Stainless - Elbow
  • Family Code : SSL
  • Join : Tube to Male Thread
  • Material : Stainless Steel
  • From : 6mm Tube
  • To : 1/4" Male Thread
  • Fluid : Air,Water,Steam
  • Operating Pressure : 0 - 1.5MPa
  • Max pressure : 1.8 MpA
  • Operating Temperature : -20 to +140 degrees C
  • The materials ensure Anti-corrosion highly, all of them are made from SUS316L except the seal ring
  • FKM is used as the seal ring, which can ensure Anti-corrosion and acid resistance, also can be used in high temperatures
  • Warranty : 12 Months
