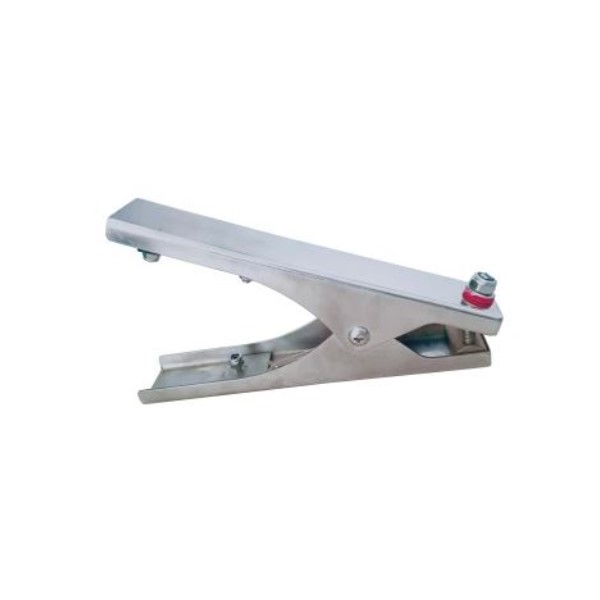

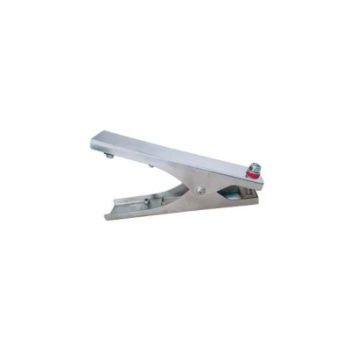

Picture of SC-05 - Ss 316 Grounding Clamp 3 Point 150Mm X 70Mm X 25Mm

SC-05 - Ss 316 Grounding Clamp 3 Point 150Mm X 70Mm X 25Mm

Manufacturer: Alptec
Ss 316 Grounding Clamp 3 Point 150Mm X 70Mm X 25Mm
SKU: SC-05
Manufacturer part number: SC-05
GTIN: null
  • SKU : SC-05
  • Brand : Alptec
  • Product Portfolio : Fluid Technology
  • Product Family : Earthing Systems
  • Product Group : Grounding Devices
  • Description : ATEX Approved SS 316L Static Grounding Clamp
  • Features : 316L Stainless Steel Construction With 3 Stainless Steel Points, More Durable And Corrosion-Resistant.
  • Features : The Stainless Steel Earth Clamp Can Be Connected To An Electronic Apparatus Together With A Two-Core Cable
  • Material : 316L Stainless Steel
  • Tips : Nichrome
  • Opening : 18mm
  • Size : 160mm X 82mm
  • Body Thickness : 2mm
  • Weight : 300g
  • Spring : Defend Spring
  • Recommended Application : Tank Truck Loading And Railway Loading.
  • Recommended Application : The Equipotential Connection Of Loading Arms Or Oil Pipeline.
  • Recommended Application : The Transfer Of The Drums Containing Raw Materials.
  • Environment Temperature : -40? To +60?
  • Usage : When Using The SC Series Static Grounding Clamps, Open The Clamp, Clip The Clamp On The Equipment To Be Grounded, Shake The Clamp To Get Rid Of The Paint Or Rust To Ensure Good Contact. Open The Clamp And Remove It After Using.
  • Warranty : 12 Months
