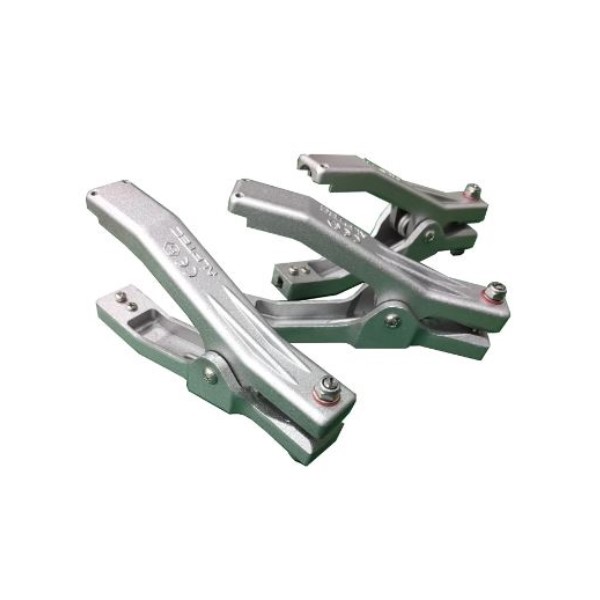

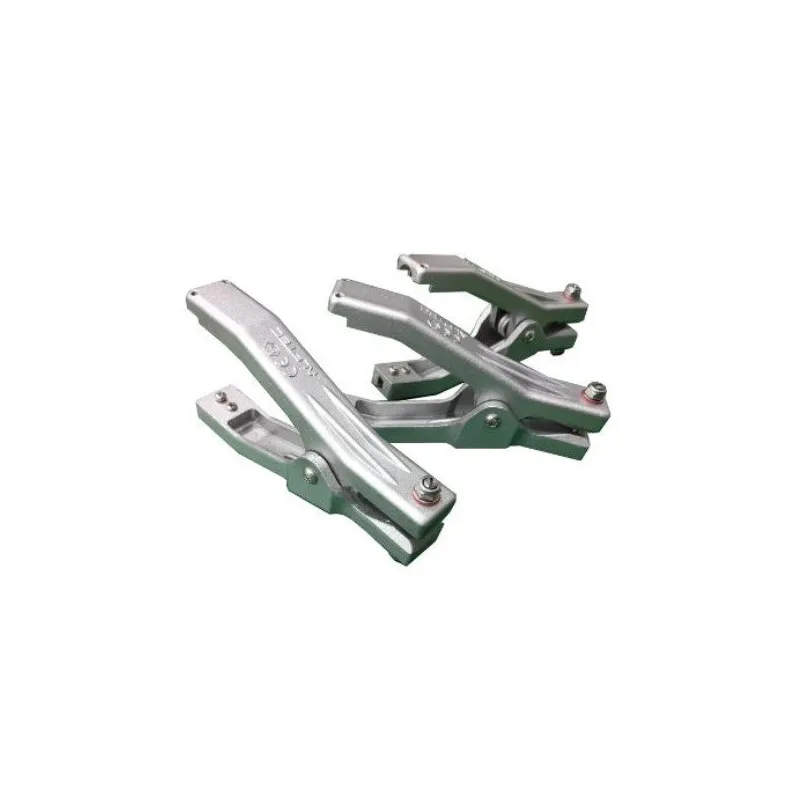

Picture of SC-03 - Grounding Clamp Alu Three Tip 160Mm X 90Mm X 46Mm

SC-03 - Grounding Clamp Alu Three Tip 160Mm X 90Mm X 46Mm

Manufacturer: Alptec
Grounding Clamp Alu Three Tip 160Mm X 90Mm X 46Mm
SKU: SC-03
Manufacturer part number: SC-03
GTIN: null
  • SKU : SC-03
  • Brand : Alptec
  • Product Portfolio : Fluid Technology
  • Product Family : Earthing Systems
  • Product Group : Grounding Devices
  • Description : The Electrostatic Grounding Clamps Are ATEX Approved.
  • Features : Die-Cast Aluminium Construction With 3 Stainless Steel Points
  • Features : The Sensing Clamp Can Be Connected To An Electronic Apparatus Together With A Two-Core Cable.
  • Material : Aluminium
  • Opening : 30mm
  • Size : 160mm X 86mm
  • Weight : 300g
  • Recommended Application : Tank Truck Loading And Railway Loading.
  • Recommended Application : The Equipotential Connection Of Loading Arms Or Oil Pipeline.
  • Recommended Application : The Transfer Of The Drums Containing Raw Materials.
  • Environment Temperature : -40? To +60?
  • Usage : When Using The SC Series Static Grounding Clamps, Open The Clamp, Clip The Clamp On The Equipment To Be Grounded, Shake The Clamp To Get Rid Of The Paint Or Rust To Ensure Good Contact. Open The Clamp And Remove It After Using.
  • Warranty : 12 Months
