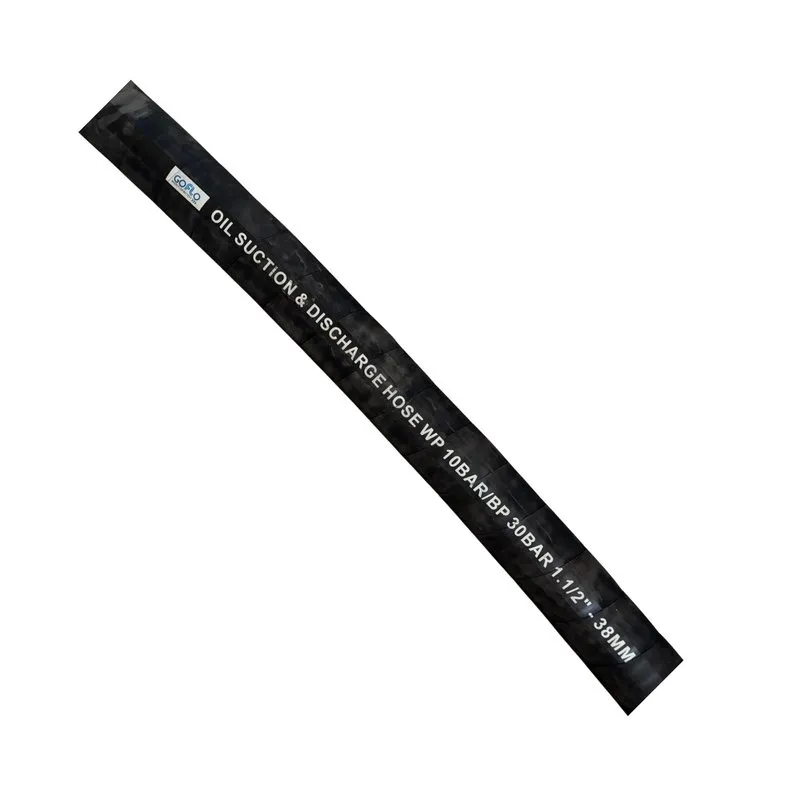

40OSD9 - 9M X 40mm Oil Suction and Discharge Hose C/B/E | Vacuum Rating : Full Vacuum (0.9 Bar)

Manufacturer: Goflo
Be the first to review this product
9M X 40mm Oil Suction and Discharge Hose C/B/E | Vacuum Rating : Full Vacuum (0.9 Bar)
SKU: 40OSD9
Manufacturer part number: 40OSD9
GTIN: null
  • SKU : 40OSD9
  • Product Portfolio : Fluid Technology
  • Catalogue Group : Hose & Swivel
  • Product Group : Hoses
  • Brand : Goflo
  • Sub Brand : Goflo
  • Warranty : 1 Year
  • Product Type : Oil Suction and Discharge Hose Assembly
  • Hose Length : 9 m
  • Internal Diameter : 40 mm
  • Outside Diameter : Approximately 54–58 mm
  • Maximum Working Pressure : 10 Bar (145 psi)
  • Burst Pressure : 30 Bar (435 psi)
  • Safety Factor : 03:01
  • Vacuum Rating : Full Vacuum (0.9 Bar)
  • Inner Tube : Black Nitrile Rubber (NBR), Oil Resistant
  • Reinforcement : High-tensile Synthetic Textile with Embedded Steel Wire Helix
  • Outer Cover : Black Synthetic Rubber, Abrasion, Weather and Ozone Resistant
  • Cover Finish : Smooth Black with White Identification Printing
  • Electrical Properties : Anti-static Construction (when correctly grounded)
  • Temperature Range : -20 Celsius to +80 Celsius
  • Minimum Bend Radius : Approximately 160 mm
  • Coupling Type : Camlock Couplings with BSP Thread and End Cap (C/B/E Assembly)
  • Compatible Media : Diesel, Petrol, Lubricating Oil, Hydraulic Oil, Fuel Oils and Petroleum Products
  • Hose Construction : Flexible Suction and Delivery Hose
  • Applications : Fuel Transfer, Tanker Loading and Offloading, Bulk Fuel Handling, Mining, Agriculture, Industrial Plants and Fuel Depots
