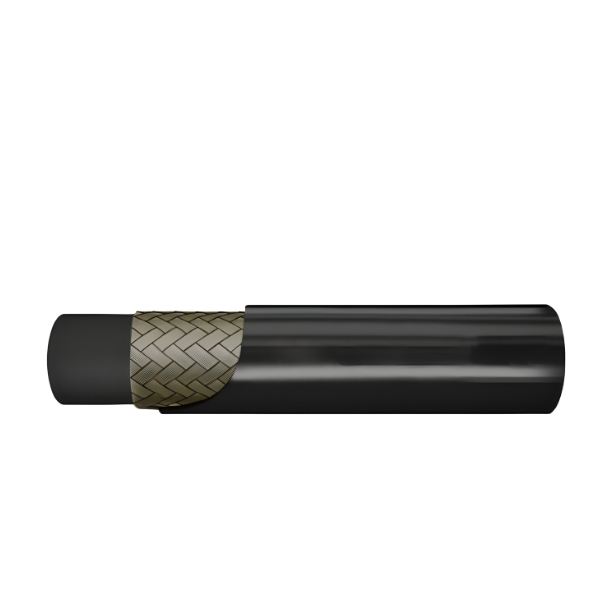

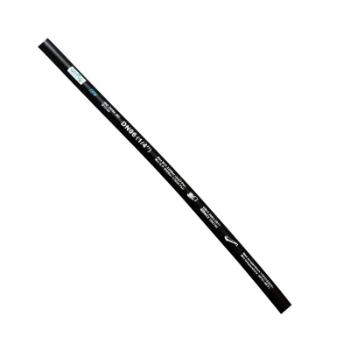

Picture of Q13-04 - 1/4" 1 Wire Steel Braid - EN853 1SN - Rubber Hydraulic Hose - 225BAR WP

Q13-04 - 1/4" 1 Wire Steel Braid - EN853 1SN - Rubber Hydraulic Hose - 225BAR WP

Manufacturer: Goflo
1/4" 1 Wire Steel Braid - EN853 1SN - Rubber Hydraulic Hose - 225BAR WP
SKU: Q13-04
Manufacturer part number: Q13-04
  • SKU : Q13-04
  • Brand : Goflo
  • Product Portfolio : Fluid Handling
  • Product Family : Hose & Swivel
  • Product Group : Hoses
  • Area of use: Diesel, Grease, Oil, Water
  • Bend Radius: 50 mm
  • Cover: Synthetic Rubber
  • Diameter Inner: 6.4 mm
  • Diameter Outer: 12.8 mm
  • Hose Size: 1/4 Inch
  • Hose Type: 1SN
  • Material: NBR, Steel
  • Pressure burst minimum: 900 bar
  • Pressure maximum: 225 bar
  • Standard EN: EN 853 1 SN
  • Standard SAE: SAE 100R1AT
  • Temperature intermittent Maximum: +120 Degrees
  • Temperature Minimum: -40 Degrees
  • Warranty : 12 Months
