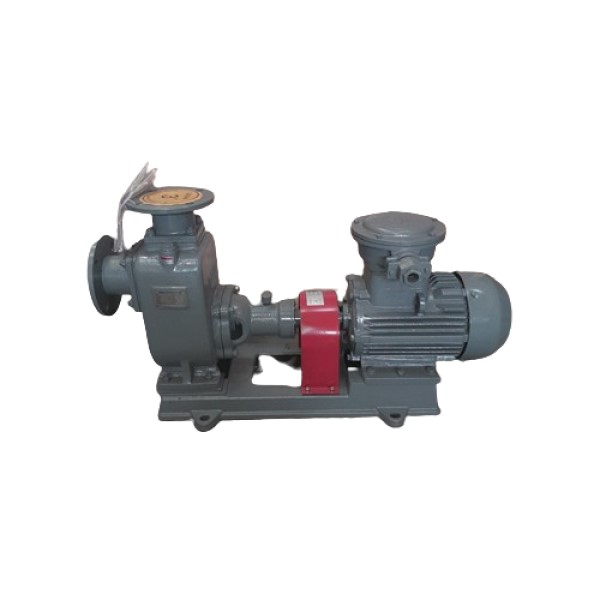

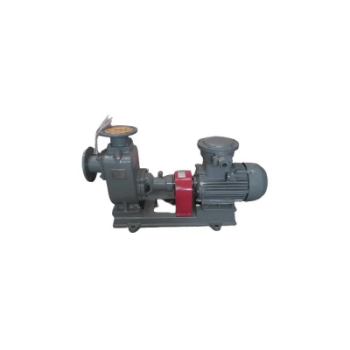

PBP-80CYZ-A-17 - 80mm Pump Self Priming Centrifugal 380V 580LPM Petrol/Diesel Ex 15M Head4Kw Motor4Kw Motor

Manufacturer: Proflow
80mm Pump Self Priming Centrifugal 380V 580LPM Petrol/Diesel Ex 15M Head4Kw Motor4Kw Motor
SKU: PBP-80CYZ-A-17
Manufacturer part number: PBP-80CYZ-A-17
GTIN: null
  • SKU : PBP-80CYZ-A-17
  • Product Portfolio : Fluid Technology
  • Catalogue Group : Pumps
  • Product Group : AC Pumps
  • Product Class : AC Fuel Pumps
  • Brand : Proflow
  • Sub Brand : Proflow
  • Warranty : 1 Year
  • Pump Configuration : Horizontal End Suction
  • Pump Type : Single-Stage Centrifugal
  • Priming Type : Self-Priming
  • Nominal Port Size : 80 mm
  • Port Size Class : Dn80
  • Port Size (Imperial) : 3 Inch
  • Flow Rate : 580 L/min
  • Flow Rate : 34.8 m3/h
  • Head : 17 M
  • Motor Power : 4 Kw
  • Voltage : 380 V
  • Phase : 3 Phase
  • Motor Type : Explosion-Proof (Ex) Electric Motor
  • Drive Type : Direct Coupled
  • Coupling Type : Flexible Coupling
  • Coupling Guard : Yes
  • Mounting Type : Base Mounted
  • Installation Orientation : Horizontal
  • Application : Petrol Transfer, Diesel Transfer
  • Service Fluid : Petroleum Products
  • Pump Casing Material : Cast Iron
  • Impeller Type : Closed Centrifugal Impeller
  • Mechanical Seal : Yes
  • Shaft Material : Stainless Steel
  • Bearing Type : Rolling Element Bearings
  • Base Frame Material : Fabricated Steel
  • Coupling Guard Material : Steel
  • Flange Connection : Yes
  • Self-Priming : Yes
  • Fuel Transfer Capable : Yes
  • Continuous Duty : Yes
  • Industrial Service : Yes
  • Rotating Equipment : Yes
  • Serviceable Design : Yes
  • Explosion-Protected Installation : Yes
  • Explosion-Proof Terminal Box : Yes
  • Flexible Coupling : Yes
  • Safety Coupling Guard : Yes
  • Flanged Inlet/Outlet : Yes
  • Base Frame Mounting : Yes
