Picture of MEC-022-1880-000 - Wall Fix.Oil Set R=5:1 Cistern 1000L Incl. Pump, Regulator, Wall Fix, Suction Tube & Hose

MEC-022-1880-000 - Wall Fix.Oil Set R=5:1 Cistern 1000L Incl. Pump, Regulator, Wall Fix, Suction Tube & Hose

Manufacturer: Meclube
Wall Fix.Oil Set R=5:1 Cistern 1000L Incl. Pump, Regulator, Wall Fix, Suction Tube & Hose
SKU: MEC-022-1880-000
Manufacturer part number: MEC-022-1880-000
GTIN: null
  • SKU : MEC-022-1880-000
  • Brand : Meclube
  • Product Portfolio : Fluid Technology
  • Product Family : Pumps
  • Product Group : Piston Pumps
  • Description : Wall-Fixed Air-Operated Oil Kits For IBC Tank 1000L. A Modular Solution That Allows The Oil Delivery With Connection To A Centralized System, To A Hose Reel Or Directly To The Delivery Hose .
  • Tank : Not Included
  • Kits Consists Of : 020-1198-000 Air-Operated Oil Pump Ratio=5:1 28 L/Min
  • Kits Consists Of : 014-1048-000 Regulator With Filter And Air Lubricator 1/4”
  • Kits Consists Of : 025-1265-000 Wall-Fixing Bracket
  • Kits Consists Of : 025-1268-125 Ø 42 mm Suction Tube 1250 mm Length
  • Kits Consists Of : 025-1262-000 Ø 42 mm Threaded Ring
  • Kits Consists Of : 910-0600-020 Flexible Hose Ø 25, 2 m Length

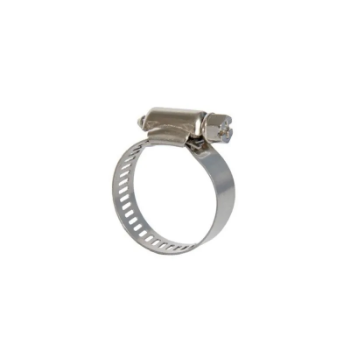

  • Kits Consists Of : B27-1132-035 N.2 Stainless Steel Screw Clamps 32-35 mm
  • Kits Consists Of : 906-0434-008 1Sc 1/2” Hose F90°- F 0,8 m Length
  • Kits Consists Of : 902-0202-020 R6 5/16”Hose 1/4” M-F 2,0 m Length
  • Kits Consists Of : F96-0100-404 Nipple 1/2” M-1/2” m

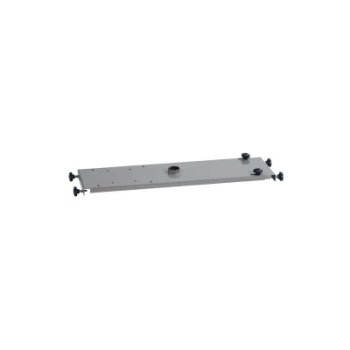

  • Kits Consists Of : 025-1267-000 Tank-Fixing Bracket
  • Gross Weight : 25.6 kg
  • Nett Weight : 22.3 kg
  • Compression Ratio : 5:1
  • For Drum Capacity Of : 1000 L
  • Flow Rate : 28 L/Min
  • Warranty : 12 Months
