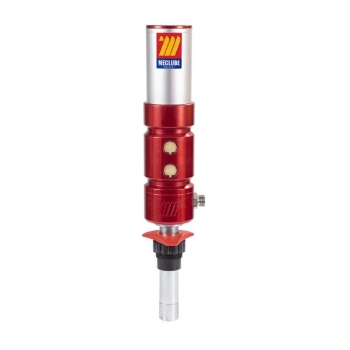

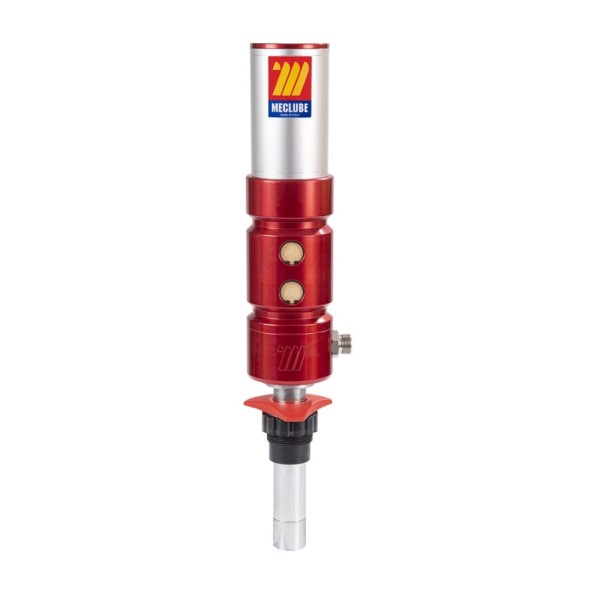

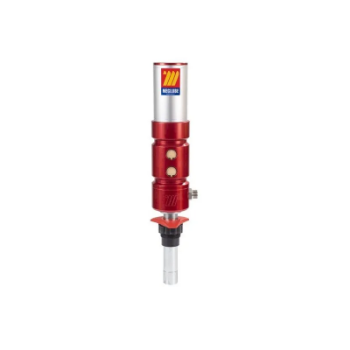

MEC-020-1180-000 - Double Acting Air Operated Oil Pump Mod.605 Ratio=5:1 Delivery Capacity 35 L/Min

Manufacturer: Meclube
Double Acting Air Operated Oil Pump Mod.605 Ratio=5:1 Delivery Capacity 35 L/Min
SKU: MEC-020-1180-000
Manufacturer part number: MEC-020-1180-000
GTIN: null
  • SKU : MEC-020-1180-000
  • Brand : Meclube
  • Product Portfolio : Fluid Technology
  • Product Family : Pumps
  • Product Group : Piston Pumps
  • Description : These Pumps Are Suitable For Workshop Oil Distribution Applications For Industrial Vehicles, Requiring A High Delivery With More Dispensing Points. These Pumps Are Advised For The Transfer Of Low-Medium Viscosity Oil (SAE 15/130), And Anti-Freeze, For Shortmedium Distances (40 – 50 m). The Delivery Capacity Of A Pump Varies According To Particular Applications And Combinations: The Pressure Of Air Supplied; Viscosity And Temperature Of The Fluid; Dimensions Of Delivery Hose; Dimensions Of Connections And Type Of Gun Which Is Used. The Operating Pressure May Vary Between A Minimum Of 3 Bar And A Maximum Of 8 Bar. The Double-Acting Guarantees The Delivery Of A Continuous And Constant Flow, Suitable For Installations On Distribution Facilities. To Optimize The Performance And The Time-Life Of The Air-Operated Pumps We Advise To Use Filtered Air
  • Features : For Wall-Fixing Or Fixed Positions. With Additional Accessories It Allows To Make Different Applications. Polyurethane Seals. With Threaded Ring For Drum Connection
  • Gross Weight : 9.9 kg
  • Nett Weight : 8.7 kg
  • Compression Ratio : 5:1
  • Air Consumption : 385 L/Min
  • Noise Level : 80 Db
  • Shank Diameter : 42 mm
  • Shank Length : 220 mm
  • Working Pressure : 6-8 Bar
  • Air Inlet Connection : F 3/8" G
  • Oil Outlet Connection : M 3/4" G
  • Oil Delivery Capacity 8 Bar : 35 L/Min
  • They are suitable for workshops oil distribution applications for industrial vehicles in which it is requested a high delivery with more dispensing points. These pumps are advised for the transfer of low-medium viscosity oil (SAE 15/130), and anti-freeze, for shortmedium distances (40 – 50 m). The delivery capacity of a pump varies according to particular applications and combinations: the pressure of air supplied; viscosity and temperature of the fluid; dimensions of delivery hose; dimensions of connections and type of gun which is used. The operating pressure may vary between a minimum of 3 bar and a maximum of 8 bar. The double-acting guarantees the delivery of a continuous and constant flow, suitable for installations on distribution facilities. To optimize the performance and the time-life of the air-operated pumps we advise to use filtered and lubricated air;
  • Warranty : 12 Months
