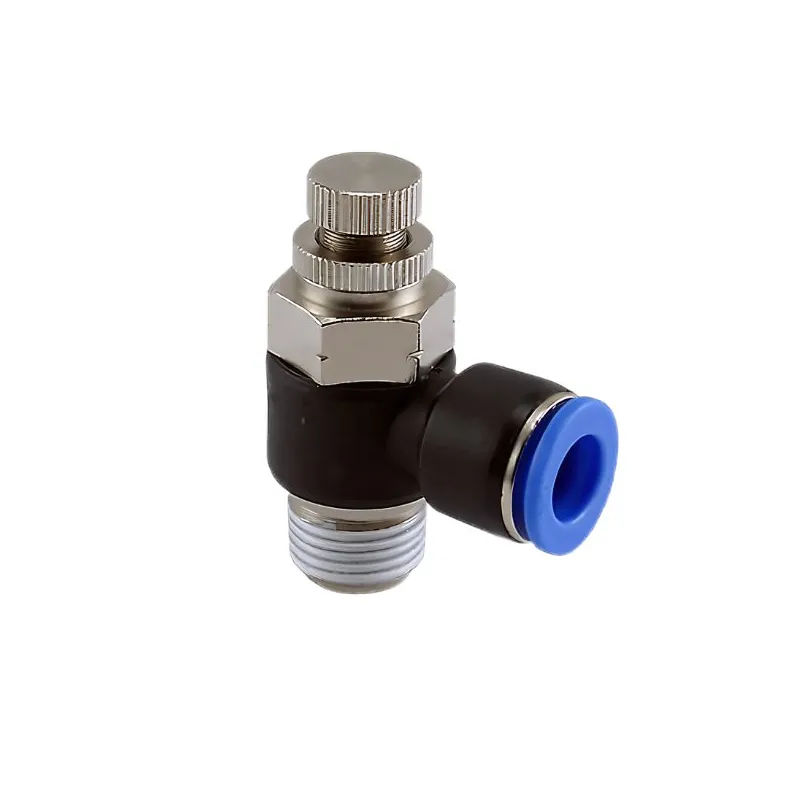

Picture of ISCD08-01 - Speed Controller Elbow with Handwheel - Flow Control Fitting - 8mm Tube To 1/8" Male Thread - Technopolymer

ISCD08-01 - Speed Controller Elbow with Handwheel - Flow Control Fitting - 8mm Tube To 1/8" Male Thread - Technopolymer

Speed Controller Elbow with Handwheel - Flow Control Fitting - 8mm Tube To 1/8" Male Thread - Technopolymer
SKU: ISCD08-01
Manufacturer part number: ISCD08-01
  • SKU : ISCD08-01
  • Brand : Isaiah
  • Product Portfolio : Pneumatics
  • Product Family : Fittings & Adaptors
  • Product Group : Flow Control Fittings
  • Product Class : Speed Controller Elbow
  • Family Code : ISCD
  • Join : Tube to Male Thread
  • Material : Technopolymer
  • From : 8mm Tube
  • To : 1/8" Male Thread
  • Fluid : Air (No other Gases or Liquids)
  • Operating Pressure : 0.1 - 1.0 Mpa (15-150 psi)
  • Max pressure : 1.5 MpA (225 psi)
  • Operating Temperature : -20 to +70 degrees C
  • Applicable Tube : Polyurethane and Nylon
  • Because of the resin body and metal body rotation lead to the direction is free.
  • Used to control the speed of the working equipment
  • Warranty : 12 Months
