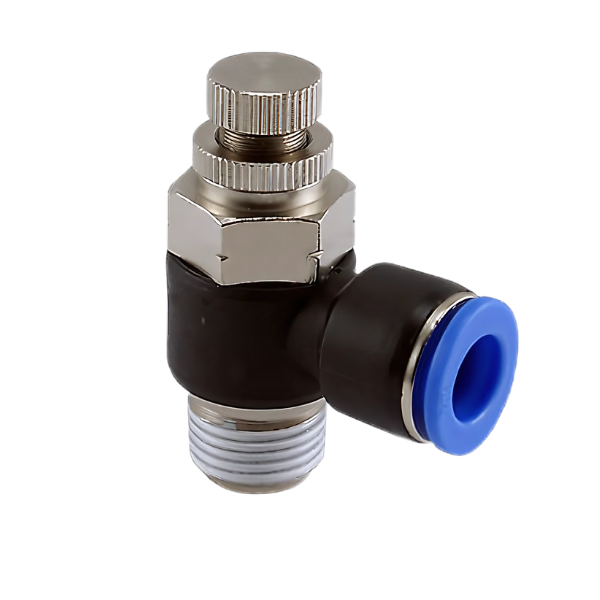

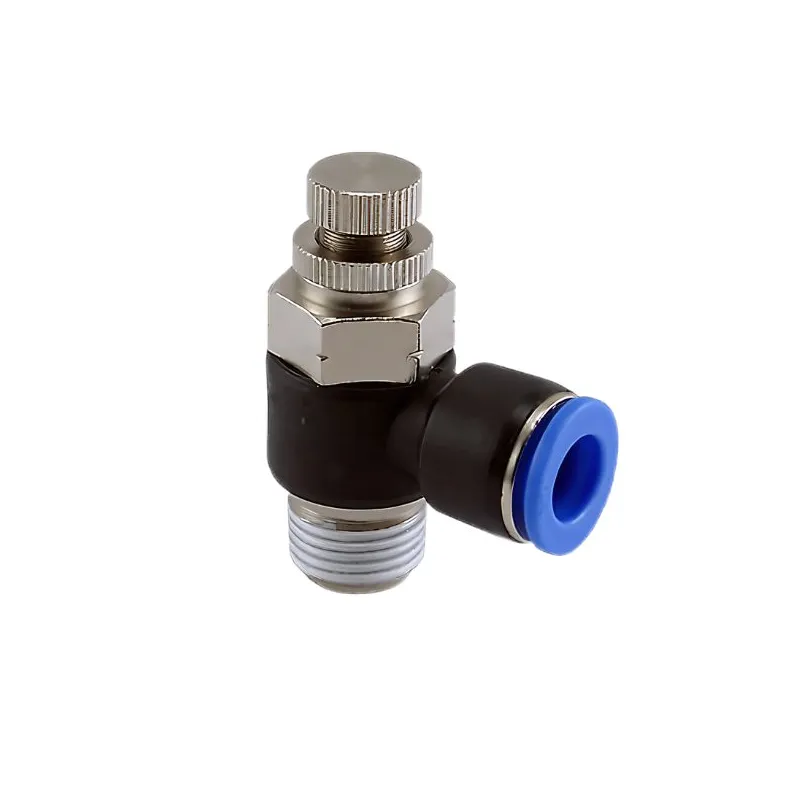

ISCD04-01-B - Speed Controller Elbow with Handwheel - Flow Control Fitting - 4mm Tube To 1/8" Male Thread

Name: ISCD04-01-B - Speed Controller Elbow with Handwheel - Flow Control Fitting - 4mm Tube To 1/8" Male Thread
SKU: ISCD04-01-B
Availability: InStock

Speed Controller Elbow with Handwheel - Flow Control Fitting - 4mm Tube To 1/8" Male Thread - Technopolymer

SKU: ISCD04-01-B

Manufacturer part number: ISCD04-01-B

Overview
SHIPPING
WARRANTY

SKU : ISCD04-01-B
Brand : Isaiah
Product Portfolio : Pneumatics
Product Family : Fittings & Adaptors
Product Group : Flow Control Fittings
Product Class : Speed Controller Elbow
Family Code : ISCD
Join : Tube to Male Thread
Material : Technopolymer
From : 4mm Tube
To : 1/8" Male Thread
Fluid : Air (No other Gases or Liquids)
Operating Pressure : 0.1 - 1.0 Mpa (15-150 psi)
Max pressure : 1.5 MpA (225 psi)
Operating Temperature : -20 to +70 degrees C
Applicable Tube : Polyurethane and Nylon
Because of the resin body and metal body rotation lead to the direction is free.
Used to control the speed of the working equipment
Warranty : 12 Months
