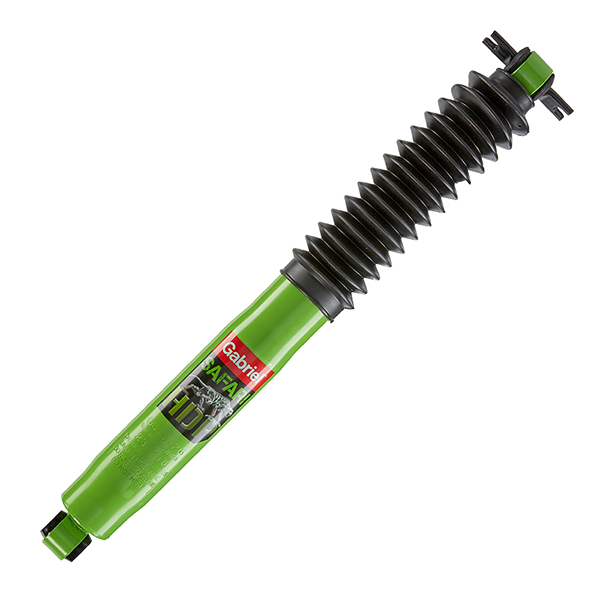

Picture of GS78026 - Shock Safari HDP - Jeep Chrysler, Wrangler 4X4 Tj

GS78026 - Shock Safari HDP - Jeep Chrysler, Wrangler 4X4 Tj

Manufacturer: Gabriel
Shock Safari HDP - Jeep Chrysler, Wrangler 4X4 Tj
SKU: GS78026
Manufacturer part number: GS78026
GTIN: 6009503911985
  • SKU : GS78026
  • Brand : Gabriel
  • Product Portfolio : Shock Absorbers
  • Product Family : 4X4 Shocks
  • Shock Safari HDP Fig. 13.2 Barpin & Sleeved Eye.jpg
  • Product Type : Safari HDP
  • Technical Configuration : Barpin & Sleeved Eye
  • Ø35, Ø41 or Ø46  Extra large big bore working cylinder
  • High temperature oil which operates effectively at 180ºC
  • Viton rod seal
  • Hydraulic stop lock
  • 360º Reinforce welded mounts
  • Solid machined eye rings
  • Durable polyurethane / rubber mounting bushes
  • Teflon DU bushes in rod guides
  • Velocity sensitive valving
  • Infusing nitrogen gas enhances quicker shock absorber response times, greater vehicle control and ride comfort
  • The extra large big bore working cylinder will reduce the stress on the working components of the shock absorber thereby increasing the durability of the shock.
  • The high temperature oil infused with Nitrogen gas allows the shock to effectively operate at higher temperatures (180ºC) as encountered in severe off-road and loading conditions. Normal oil operates effectively at 120 ºC.
  • Infusing nitrogen gas enhances quicker shock absorber response times, greater vehicle control and ride comfort.
  • The new polyurethane / rubber mounting bushes considerably reduce wear and tear.
  • The Teflon insert between the rod guide and the rod significantly reduces the friction between the rod and the rod guide.
  • The new hydraulic stop lock cushions any metal to metal contact inside the shock under full extension.
  • The new cast iron piston ring is much more durable in high operating temperatures than the alternative Teflon type rings.
  • The full 360º reinforce welded mounts adds significant strength to the mounting points of the shock absorber.
  • One piece solid machined eye-rings are much stronger and aesthetically more appealing than the normal alternative curled eye rings
  • Rust inhibit finish applied (chrome plated & trication of zinc phosphate)
  • Designed for both standard and up to 2” or 50mm raised suspensions
  • Designed for both standard and up to 2” or 50mm raised suspensions
  • Warranty : Gabriel 3 year warranty
  • Warranty : Shock Absorbers which are used on applications or fitted contrary to the information supplied in the Gabriel®catalogue or subsequent amendments or technical bulletins, are excluded from the Warranty.
  • Warranty : Shock Absorbers that have been modified or damaged through incorrect installation e.g. the damage caused to piston rods through not using the specified tools are excluded from the Warranty.
  • Warranty : Shock Absorbers damaged as a result of an accident are excluded from the Warranty.
  • Warranty : Shock Absorbers that have failed for reasons other than fair wear and tear during normal and proper use – e.g. using the vehicle for rally or racing sports, or purposes for which it was not designed, are excluded from the Warranty.
  • Warranty : Liability for any damages whether incidental, consequential or otherwise including labour charges, are excluded from the Warranty.
