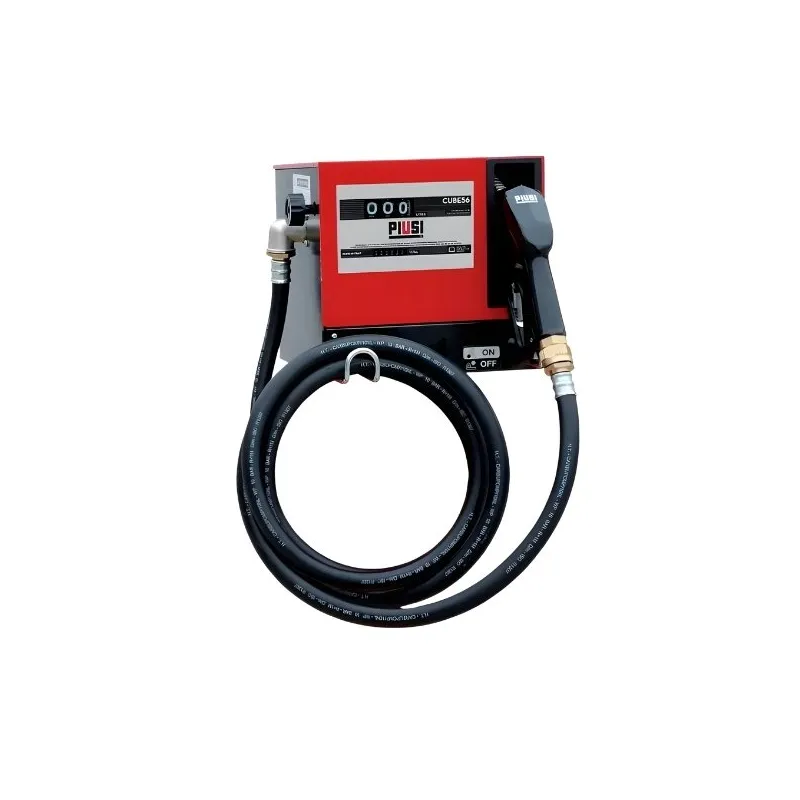

Picture of F0059100A - Diesel Dispensing Unit - Cube 70/33 70L/Min 230/50 500W Panther 72 Pump K33 Meter A60 Nozzle 1" BSP

F0059100A - Diesel Dispensing Unit - Cube 70/33 70L/Min 230/50 500W Panther 72 Pump K33 Meter A60 Nozzle 1" BSP

Diesel Dispensing Unit - Cube 70/33 70L/Min 230/50 500W Panther 72 Pump K33 Meter A60 Nozzle 1" BSP 4m Hose Length
SKU: F0059100A
Manufacturer part number: F0059100A
  • SKU : F0059100A
  • Brand : Piusi
  • Product Portfolio : Fluid Handling
  • Product Family : Dispensing & Filling Equipment
  • Product Group : Mechanical Dispensers
  • Product Class : Self Service Dispensers
  • Fuel
  • Dispensers
  • Cube - Mechanic
  • Diesel/HVO/XTL
  • Industrial/Agriculture/Logistic/Mining & Construction
  • Flow Rate (LPM): 70
  • Flow Rate (GPM): 18
  • AC V./HZ DC Volt: 230/50
  • Watts: 500
  • Amp Maximum: 4.2
  • Pump Type: Panther 72
  • Meter: K33
  • Nozzle: A60
  • H20 Filter: No
  • Inlet BSP: 1"
  • Hose Length: 4 Metres
  • Hose Diameter: 1"
  • The characteristic of this diesel dispenser is that it can be adapted to different applications
  • CUBE 56-70-90 is suitable for different sectors: from the agricultural sector, the diesel transfer pump station can also be used in the logistics, automotive, construction and industrial sectors
  • The CUBE 56-70-90 fuel dispenser is equipped with a self-priming vane pump with bypass that ensures high performance
  • CUBE 56-70-90 as a diesel dispenser is installed on anti-vibration mounts for better comfort and practicality in use, while the mechanical seal and the thermal protection against overheating of the induction motor make the product reliable and safe.
  • The nozzle supplied is automatic with a swivel connection and the nozzle holder has a pump start/stop lever
  • The installation of the mesh filter on the suction side ensures a long life of the pump, because no foreign matter ends up in the rotor and causes a blockage and consequent breakage
  • The CUBE 56-70-90 diesel dispenser also consists of a volumetric flow meter with oscillating disc for the management of the dispensing operations
  • The simple view allows you to monitor the quantity dispensed.
  • Warranty : 12 Months
