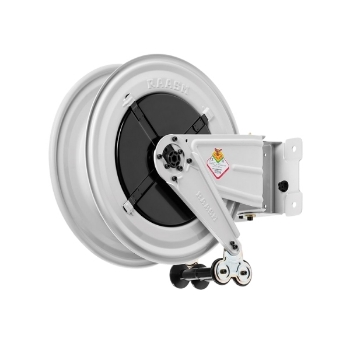

Picture of 8420.350 - Swivelling Hose Reel Series 430, for Hot Water, 400 Bar, without Hose

8420.350 - Swivelling Hose Reel Series 430, for Hot Water, 400 Bar, without Hose

Manufacturer: Raasm
Swivelling Hose Reel Series 430, for Hot Water, 400 Bar, without Hose. Inlet G 3/8" (F), Outlet G 1/2" (F)
SKU: 8420.350
Manufacturer part number: 8420.350
  • SKU : 8420.350
  • Brand : Raasm
  • Product Portfolio : Fluid Handling
  • Product Family : Hose & Cable Reels
  • Product Group : Open Hose Reels
  • Product Class : Open Reels Air & Water
  • Pressure : 400 Bar
  • Compatible Fluids : Water Max 130 °C
  • Swivel Joint : AISI 304 Stainless Steel
  • Seals : Viton® and Teflon®
  • Characteristic : Swivelling
  • Material : Painted Steel
  • Inlet : G 3/8" (F)
  • Outlet : G 1/2" (F)
  • Reel Flow Path : AISI 304 Stainless Steel - Zinc Plated Steel
  • Diameter 10x14.5 : Length : 20 m
  • Diameter 13x19 : Length : 16 m
  • Diameter 16x27 : Length : 14 m
  • Diameter 5/16" : Length : 20 m
  • Diameter 3/8" : Length : 20 m
  • Diameter 1/2" : Length : 16 m
  • Certifications : CE and Atex (II 2 GD)
  • Areas of Use : Aeronautics, Agriculture, Automotive, Building and Road Construction, Manufacturing Industry, Mining Industry, Lube Trucks and Transports, Railway Transport
  • Warranty : 12 Months
