Picture of 76103 - Shock Fleet Ryder - Bedford, ERF, Isuzu, Man, Nissan, Leyland - Front Left & Right

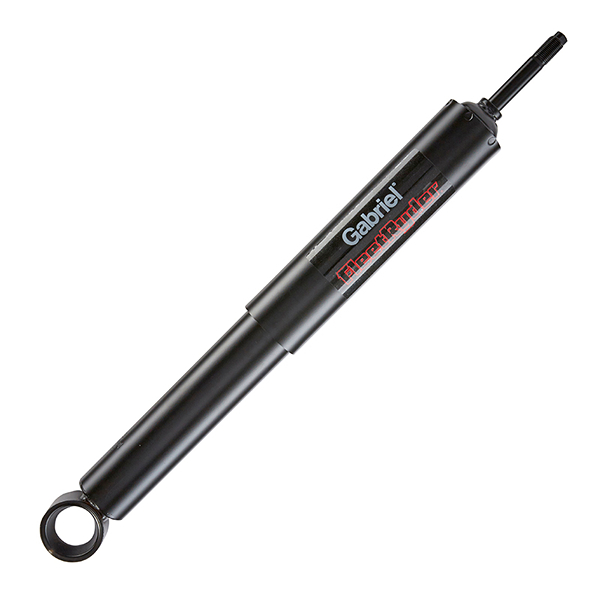

76103 - Shock Fleet Ryder - Bedford, ERF, Isuzu, Man, Nissan, Leyland - Front Left & Right

Manufacturer: Gabriel
Shock Fleet Ryder - Bedford YRT, ERF Trailblazer, Isuzu FVR2200 Turbo/FVR900 Turbo, Man M2000 15.223L/M2000 13.223L/K/LA, Nissan CB20/KJ10K/CK10A/CK20D/CK20L/CK20N/CK25D/CK25N/CK41CT/CM15E/CW350HTA/CW350HTF/CW290HDN/CW290PHN/CW290PPA/CW290HTA/CW290HTF/CK290CTA/CW41H/CW41P/CW45HD/CW45PA/CW46PAF/CW46PAA/CW47HDN/CW47HTA/CW47HTF/CW47PAF/CW47PAN/CW55HTF/CW56HTF, Leyland Marathon - Front Left & Right (See Note for Rear Fitment)
SKU: 76103
Manufacturer part number: 76103
  • SKU : 76103
  • Brand : Gabriel
  • Product Portfolio : Shock Absorbers
  • Product Family : Truck Shocks
  • Shock FleetRyder Fig. 6.1 Stud & Rubber Eye.jpg
  • Fitment Position : Front & Rear (See Note)
  • Fitment Orientation : Left & Right
  • Product Type : Fleet Ryder
  • Technical Configuration : Stud & Rubber Eye
  • Ø41 and Ø52 Extra large bore working cylinder
  • Designed for standard and air suspensions
  • Single or multi lip rod seals
  • Viton or rubber rod seals
  • Cast iron piston ring
  • Sintered metal rod guides
  • Metal dust covers
  • Natural mounting bushes
  • The extra large big bore working cylinder will reduce the stress on the working components of the shock absorber thereby increasing the durability of the shock
  • Specifically designed for both normal and air suspension systems
  • Designed to be a replacement for most shock absorbers working in conjunction with air suspension systems
  • High temperature oil or extra high temperature oil depending on the application
  • Cast iron piston ring to improve durability
  • Metal dust covers to protect the shock absorber from the damage due to stones and rocks typically associated with commercial applications
  • Rust inhibiting finish applied to shaft (chrome plated & trication of zinc phosphate)
  • Manufactured locally to the highest quality standards using premium quality components
  • Warranty : Gabriel 12-month warranty
  • Warranty : Shock Absorbers which are used on applications or fitted contrary to the information supplied in the Gabriel®catalogue or subsequent amendments or technical bulletins, are excluded from the Warranty.
  • Warranty : Shock Absorbers that have been modified or damaged through incorrect installation e.g. the damage caused to piston rods through not using the specified tools are excluded from the Warranty.
  • Warranty : Shock Absorbers damaged as a result of an accident are excluded from the Warranty.
  • Warranty : Shock Absorbers that have failed for reasons other than fair wear and tear during normal and proper use – e.g. using the vehicle for rally or racing sports, or purposes for which it was not designed, are excluded from the Warranty.
  • Warranty : Liability for any damages whether incidental, consequential or otherwise including labour charges, are excluded from the Warranty.
  • Warranty : Wear and tear to the shock as a result of the re-use of old parts such as rubber dirt shields, damaged bump rubbers, PK’s, MK’s etc, are excluded from the Warranty.
  • Warranty : Reconditioned or recycled shock absorbers, are excluded from the Warranty.
  • Warranty : Ride-levelers with air sleeve abrasion caused by incorrect fitting, are excluded from the Warranty.
  • Warranty : Shock absorbers which are used on modified suspension that are no longer to OE specification, are excluded from the Warranty.
  • Note : Front & Rear Left & Right on ERF Trailbazer. Rear Left & Right ONLY on Leyland Marathon
