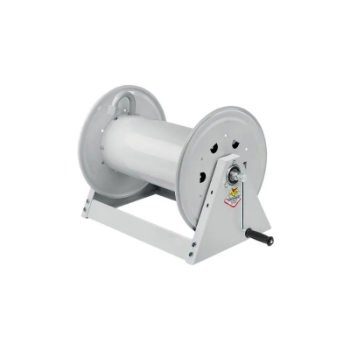

Picture of 7552001.100 - Manual Hose Reel Series 500, for Oil and Similar, 20 Bar, Without Hose

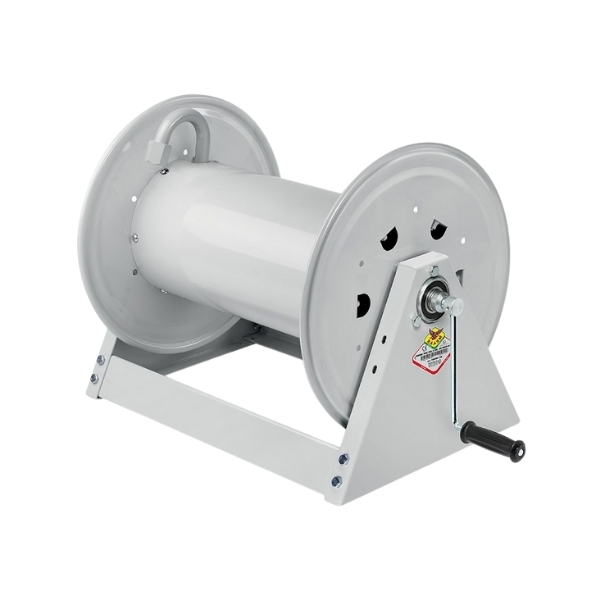

7552001.100 - Manual Hose Reel Series 500, for Oil and Similar, 20 Bar, Without Hose

Manual Hose Reel Series 500, for Oil and Similar, 20 Bar, Without Hose. Drum Width 460 mm. Inlet-Outlet G 1" (F)
SKU: 7552001.100
Manufacturer part number: 7552001.100
  • SKU : 7552001.100
  • Brand : Raasm
  • Product Portfolio : Fluid Handling
  • Product Family : Hose & Cable Reels
  • Product Group : Trolley Mounted Reels
  • Pressure : 100 Bar
  • Compatible Fluids : Water Max 130 °C
  • Swivel Joint : Aisi 316 Stainless Steel
  • Seals : Viton®
  • Characteristic : Fixed
  • Material : Aisi 316 Stainless Steel
  • Inlet : G 1/2" (F)
  • Outlet : G 1/2" (F)
  • Reel Flow Path : Aisi 316 Stainless Steel
  • Diameter 1/4" : Length : 300 m
  • Diameter 3/8" : Length : 200 m
  • Diameter 1/2" : Length : 150 m
  • Diameter 3/4" : Length : 80 m
  • Diameter 1" : Length : 50 m
  • Areas Of Use : Agriculture, Building And Road Construction, Manufacturing Industry, Mining Industry, Lube Trucks And Transports, Railway Transport
  • Warranty : 12 Months
