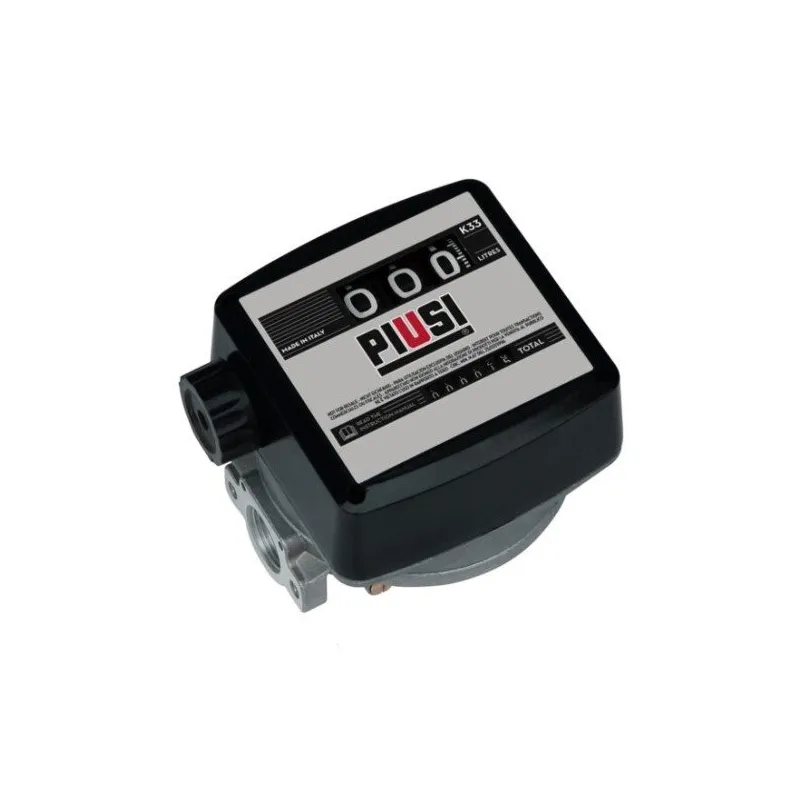

Picture of 552000 - Meter - Mechanical 3 Digit 20-120 L/Min Diesel K33 1"

552000 - Meter - Mechanical 3 Digit 20-120 L/Min Diesel K33 1"

Manufacturer: Piusi
Meter - Mechanical 3 Digit 20-120 L/Min Diesel K33 1", Operating Pressure 3.5 Bar , Inlet / Outlet : 1" BSP , Diesel / HVO / XTL, 4 Flow Direction
SKU: 552000
Manufacturer part number: 552000
GTIN: null
  • SKU : 552000
  • Brand : Piusi
  • Product Portfolio : Fluid Technology
  • Product Family : Meters
  • Product Group : Mechanical Meters
  • Product Class : Mechanical Fuel Meters
  • Fuel
  • K33
  • Mechanical Meters
  • Diesel
  • The PIUSI K33 is a mechanical flow meter suitable for the monitoring of diesel. PIUSI K33 as a mechanical flow meter has a partial indicator with 3 digits (max. 999 litres), total 6 digits.
  • Precision & Quality : The K33 mechanical diesel flow meter has been designed for precise measurement of the quantity of fuels dispensed for non-commercial use. Easy to calibrate and install, the K33 flow meter can monitor the quantity dispensed for a maximum flow rate of 20-120 l/min and with a maximum working pressure of the pump of 10 bar. In addition, they can guarantee a burst pressure of 30 bar with a metering accuracy of +/- 1%
  • Reliability : The K33 mechanical flow meter for diesel is easy to calibrate at the place of installation and is suitable for installation on pumps or service stations for diesel, for those who want to keep the amount of dispensed fluid monitored without special needs for storage. K33 is reliable and economic mechanical flow meters that can also be used by gravity, thanks to the low resistance to flow. It is also available a pulser version of the meter which includes: Mod. Pulser: card type "Open collector",
    frequency 10 pulses/litre, 6-24 V DC power supply, max. 10 mA.
  • Ready to Use
  • Bursting pressure 30 Bar
  • No Battery Needed
  • Easy to Install and Calibrate
  • 4 Flow Direction
  • Fluid : Diesel / HVO / XTL
  • Applications : Agriculture , Industrial, Logistics , Mining & Construction
  • Flow Rate : 20-120 L/Min
  • Accuracy : +-1%
  • Pressure : 3.5 Bar Max Operating
  • Repeatibility : +-0.3%
  • Inlet / Outlet : 1" BSP
  • Weight : 2.08 kg
  • Warranty : 12 Months
