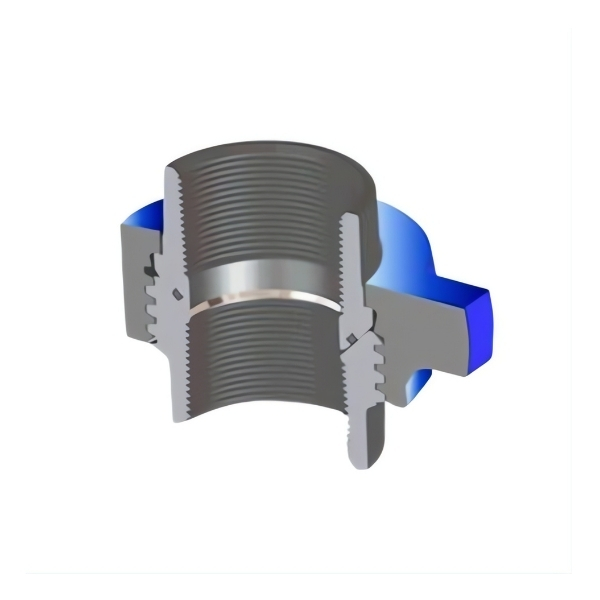

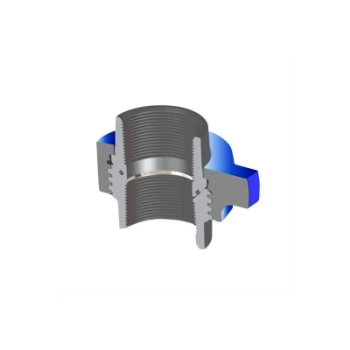

Picture of 5-FIG206 - 5" Fig206 (A105) Hammer Union

5-FIG206 - 5" Fig206 (A105) Hammer Union

Manufacturer: Goflo
5" Fig206 (A105) Hammer Union
SKU: 5-FIG206
Manufacturer part number: 5 FIG206(A105)
  • SKU : 5-FIG206
  • Brand : Goflo
  • Product Portfolio : Fluid Handling
  • Product Family : Accessories & Spares
  • Product Group : Couplings & Fittings
  • Product Class : Union
  • Additional Information : 5-3/4 In Center To End, 30.420 Lb Weight
  • Color : Gray Sub With Blue Nut
  • Connection Size 1 : 5 In
  • Connection Size 2 : 5 In
  • Connection Type : Mnpt|Fnpt
  • Connection Type 1 : Mnpt
  • Connection Type 2 : Fnpt
  • Dimensions : 6.38 In Dia X 6.02 In H
  • Fitting Type : Union
  • Material : Steel
  • Material Construction : Steel
  • Maximum Operating Pressure : 2000 Psi Cwp
  • Warranty : 12 Months
