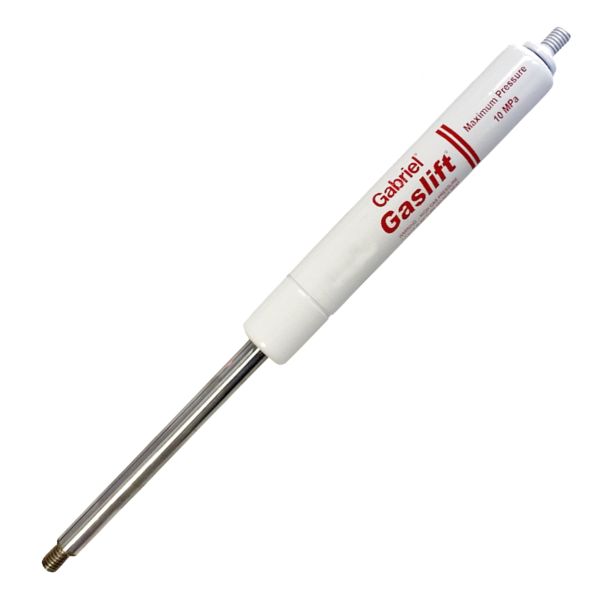

Picture of 4380 - Gaslift - Toyota Avanza 1,3 & 1,5 (Xenia) 2006 -2012 Rear Left
  • Home /
  • Gas Springs /
  • 4380 - Gaslift - Toyota Avanza 1,3 & 1,5 (Xenia) 2006 -2012 Rear Left

4380 - Gaslift - Toyota Avanza 1,3 & 1,5 (Xenia) 2006 -2012 Rear Left

Manufacturer: Gabriel
Gaslift - Toyota Avanza 1,3 & 1,5 (Xenia) 2006 -2012 Rear Left
SKU: 4380
Manufacturer part number: 4380
  • SKU : 4380
  • Brand : Gabriel
  • Product Portfolio : Gas Springs
  • The Gabriel® Gaslift® range is locally designed and developed to be a simple, hassle free, cost effective and customisable solution, that will allow you to take the lift out of lifting.
  • Body End : Ball & Socket Assembly
  • Rod End : Bracket
  • Collapsed Length : 282 mm
  • Extended Length : 436 mm
  • Stroke : 154 mm
  • Force : 480 N
  • Ø16 and Ø19 Bore working cylinder.
  • Designed to be used to a pressure of up to 1000N (rod size applicable).
  • Uses specific oil pumped with nitrogen which is designed to work in South African and African climates
  • Single lip rod seals.
  • Sintered metal rod guides.
  • A hassle-free ready to use solution for both industrial and automotive requirements.
  • The industrial range can be customised for particular applications.
  • 4000 Series can be pressurised to 500N
  • 4100 Series can be pressurised to 1000N
  • Plastic or metal end fittings to suit specific applications and cost options.
  • Universal canopy replacements.
  • Manufactured locally to the highest quality standards using premium quality components.
  • The Gaslift® spring consists of a cylinder, piston and rod assembly able to extend telescopically. The cylinder is filled with nitrogen gas at a very high pressure. It is this gas pressure which creates the lifting ability of the Gaslift® and the force exerted is proportional to the gas pressure.
  • Gabriel Gaslifts are covered by a 12 month warramty and delivers up to its historical South African pedigree and provides for total peace of mind.
  • Liability for any damages whether incidental, consequential or otherwise including labour charges, are excluded from the Warranty.
