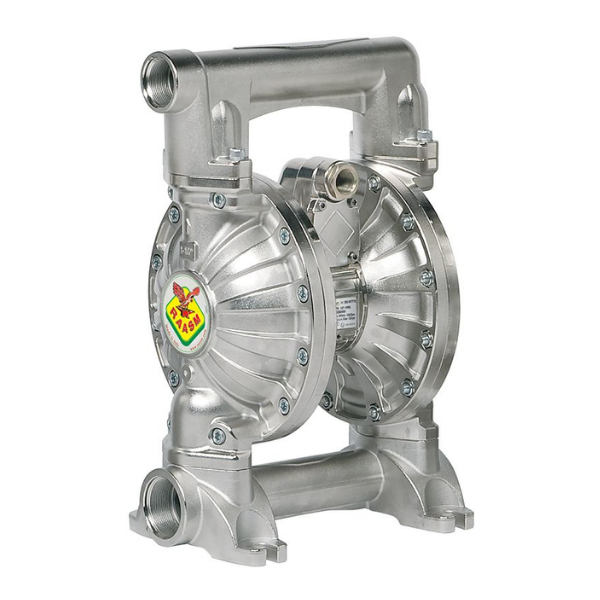

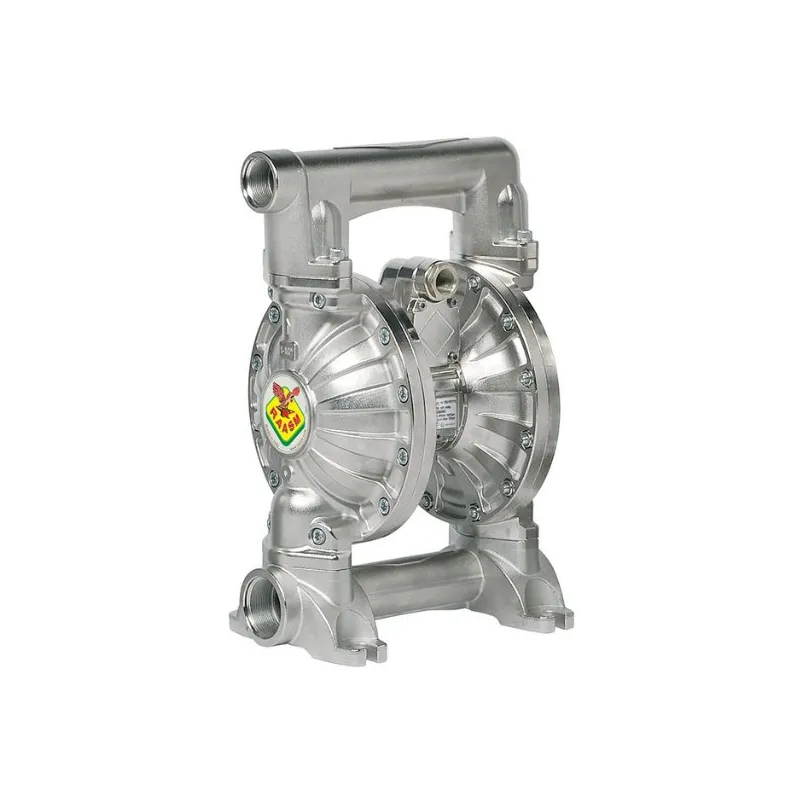

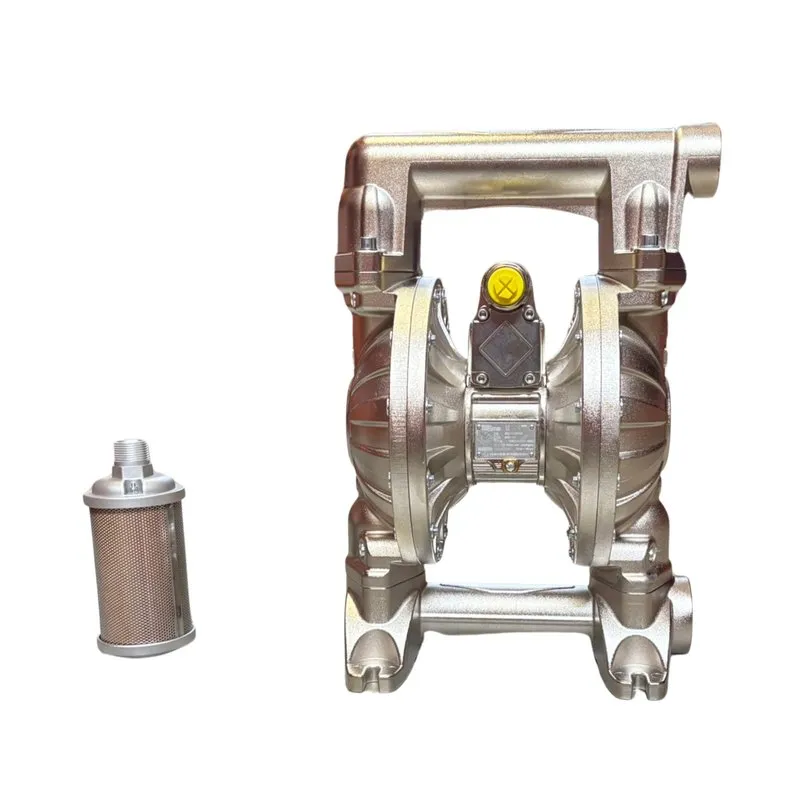

3C1/40111NHH - Diaphragm Pump Series 1.1/2" 1120-Ab In Aluminum With Membranes In Nbr, Seats And Balls In Hytrel®

Name: 3C1/40111NHH - Diaphragm Pump Series 1.1/2" 1120-Ab In Aluminum With Membranes In Nbr, Seats And Balls In Hytrel®
SKU: 3C1/40111NHH
Availability: InStock

Manufacturer: Raasm

Diaphragm Pump Series 1.1/2" 1120-Ab In Aluminum With Membranes In Nbr, Seats And Balls In Hytrel®

SKU: 3C1/40111NHH

Manufacturer part number: 3C1/40111NHH

GTIN: null

SKU : 3C1/40111NHH
Brand : Raasm
Product Portfolio : Fluid Technology
Product Family : Pumps
Product Group : Diaphragm Pumps
Fluids : Fresh Oil, Water, Diesel Fuel
Sectors : Aeronautic, Agriculture, Automotive, Lube Truck and Industrial Vehicle, Cleaning, Building Industry and Road Construction, Railway Transport, Chemical Industry, Manufacturing Industry, Mining, Shipping and offshore
Certifications : Atex (Zone 1), Atex (Zone 21)
Flow Rate : 480 l/min
Ratio : 1:1
Max Pressure : 8 Bar
Max Cycles per Minute : 220 CPM
Delivery per Cycle : 2,150 L
Max Suction Lift : Dry Column 5 M - Wet Column 7,5 M
Max Size Pumpable Solids : 5,5 mm
Max Working Temperature : 100 °C
Noise Level : 78 dB
Max Air Consumption : 3,4 m3/Min
Air Working Pressure : 2 - 6 Bar
Air Inlet Connection : G ¾" (F)
Air Outlet Connection (Muffler) : G 1" (F)
Fluid Inlet Connection : G 2" (F)
Fluid Outlet Connection : G 1½" (F)
Balls For Inlet : Ball Valve
Membranes : NBR
Balls : Hytrel®
Seats : Hytrel®
Packing : No. 1 - 40x32x54,5 cm
Gross Weight : 21,5 kg
Warranty : 12 Months
