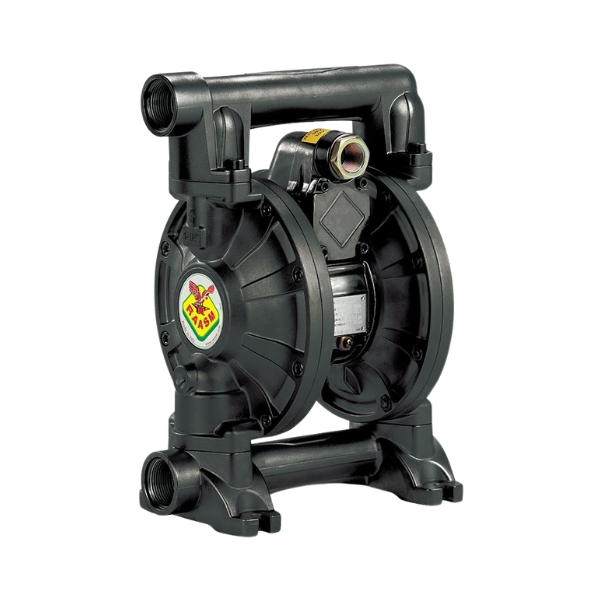

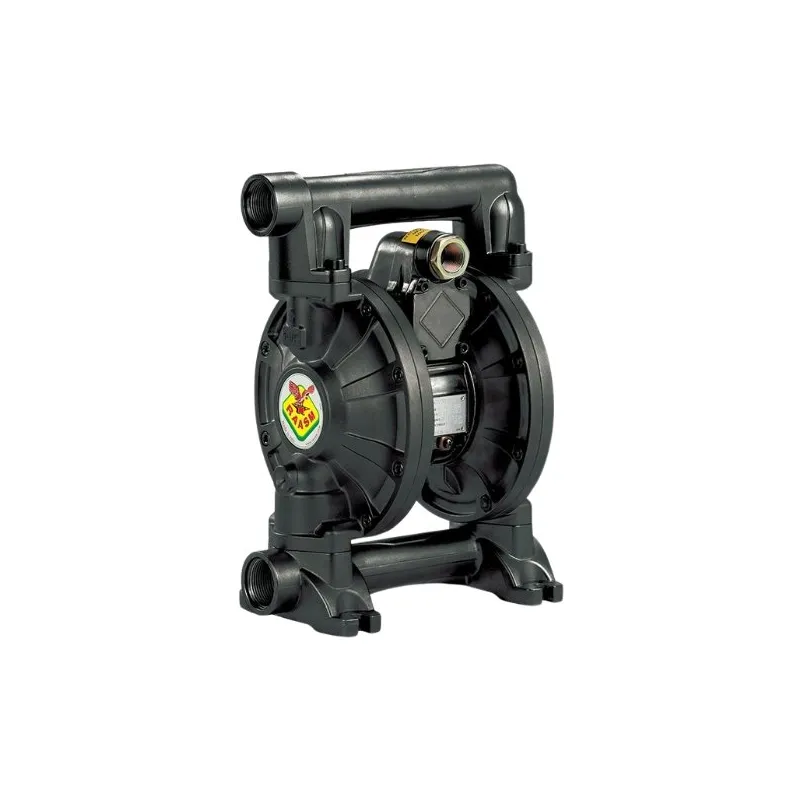

Picture of 3C1/3066VHHH - 200L/Min Diaphragm Pump in Aluminum with Cataphoresis Treatment Series AAB-114

3C1/3066VHHH - 200L/Min Diaphragm Pump in Aluminum with Cataphoresis Treatment Series AAB-114

Manufacturer: Raasm
Diaphragm Pump in Aluminum with Cataphoresis Treatment Series AAB-114 with Membranes, Balls and Seats in Hytrel®. Flow Rate 200 L/Min
SKU: 3C1/3066VHHH
Manufacturer part number: 3C1/3066VHHH
  • SKU : 3C1/3066VHHH
  • Brand : Raasm
  • Product Portfolio : Fluid Handling
  • Product Family : Pumps
  • Product Group : Diaphragm Pumps
  • Flow Rate : 200 l/min
  • Ratio : 1:1
  • Max Pressure : 8 Bar
  • Max Cycles per Minute : 260 cpm
  • Delivery per Cycle : 0,800 l
  • Max Suction Lift : Dry Column 5 m - Wet Column 7,5 m
  • Max Size Pumpable Solids : 3 mm
  • Max Working Temperature : 100 °C
  • Noise Level : 75 dB
  • Max Air Consumption : 1,80 m3/min
  • Air Working Pressure : 2 - 6 Bar
  • Air Inlet Connection : G 3/4" (F)
  • Air Outlet Connection (Muffler) : G 1" (F)
  • Fluid Inlet Connection : G 1.1/4" (F)
  • Fluid Outlet Connection : G 1.1/4" (F)
  • Balls For Inlet : Ball Valve
  • Membranes : Hytrel®
  • Balls : Hytrel®
  • Seats : Hytrel®
  • Packing : No. 1 - 0,03 m3
  • Gross Weight : 15 Kg
  • Areas of Use : Aeronautics, Agriculture, Automotive, Building and Road Construction, Chemical Industry, Manufacturing Industry, Mining Industry, Lube Trucks and Transports, Shipping and offshore, Railway Transport
  • Warranty : 12 Months
