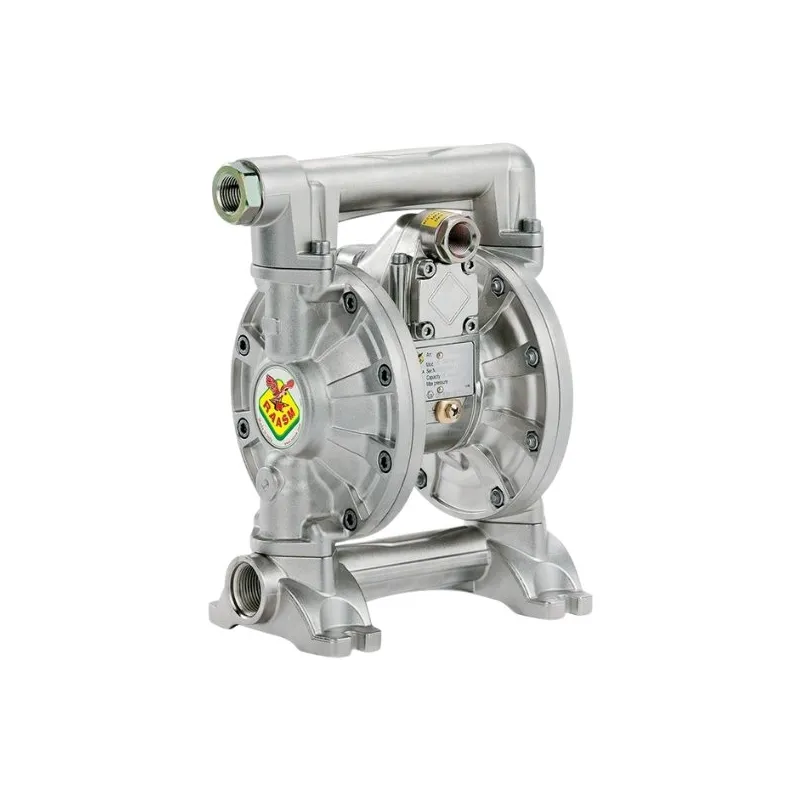

Picture of 3C1/16111NHH - Diaphragm Pump Series 1/2" 120-Ab In Aluminum With Membranes In Nbr, Seats And Balls In Hytrel®

3C1/16111NHH - Diaphragm Pump Series 1/2" 120-Ab In Aluminum With Membranes In Nbr, Seats And Balls In Hytrel®

Manufacturer: Raasm
Diaphragm Pump Series 1/2" 120-Ab In Aluminum With Membranes In Nbr, Seats And Balls In Hytrel®
SKU: 3C1/16111NHH
Manufacturer part number: 3C1/16111NHH
GTIN: null
  • SKU : 3C1/16111NHH
  • Brand : Raasm
  • Product Portfolio : Fluid Technology
  • Product Family : Pumps
  • Product Group : Diaphragm Pumps
  • Fluids : Waste Oil, Fresh Oil, Antifreeze, Windshield Fluid, Water, Diesel Fuel
  • Areas of Use : Aeronautic, Agriculture, Automotive, Lube Truck and Industrial Vehicle, Cleaning, Building Industry and Road Construction, Railway Transport, Chemical Industry, Manufacturing Industry, Mining, Shipping and offshore
  • Certifications : Atex (Zone 1), Atex (Zone 21)
  • Flow Rate : 70 l/min
  • Ratio : 1:1
  • Max Pressure : 8 Bar
  • Max Cycles Per Minute : 400 CPM
  • Delivery Per Cycle : 0,188 L
  • Max Suction Lift : Dry Column 4,5 M - Wet Column 7,5 M
  • Max Size Pumpable Solids : 1,5 mm
  • Max Working Temperature : 100 °C
  • Noise Level : 75 dB
  • Max Air Consumption : 0,8 m3/Min
  • Air Working Pressure : 2 - 6 Bar
  • Air Inlet Connection : G 3/8" (F)
  • Air Outlet Connection (Muffler) : G 1/2" (F)
  • Fluid Inlet Connection : G ¾" (F)
  • Fluid Outlet Connection : G 1/2" (F)
  • Balls For Inlet : Ball Valve
  • Membranes : NBR
  • Balls : Hytrel®
  • Seats : Hytrel®
  • Packing : No. 1 - 29x24x37 cm
  • Gross Weight : 6,3 kg
  • Warranty : 12 Months
