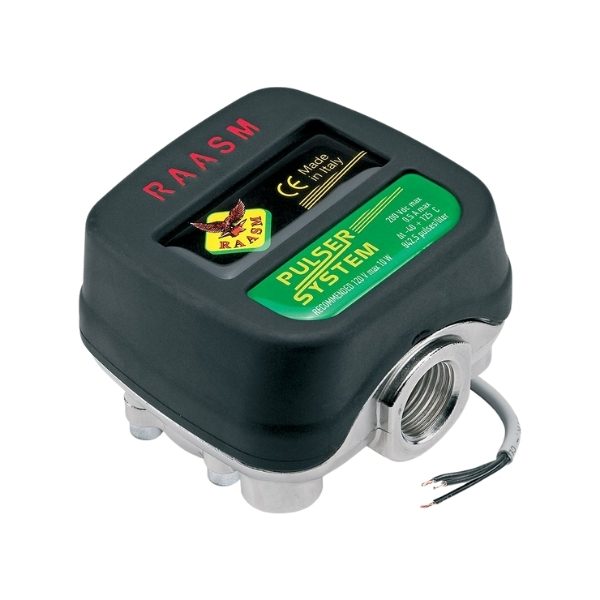

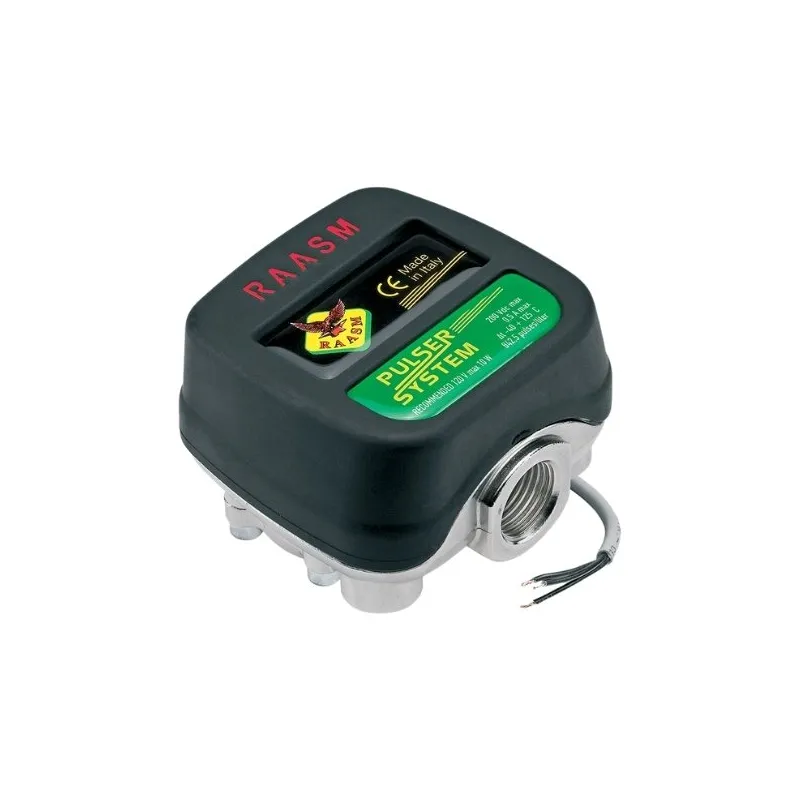

Picture of 39610 - 35L/Min Pulser Meter For Oil with Inlet-Outlet G 1/2" (F)

39610 - 35L/Min Pulser Meter For Oil with Inlet-Outlet G 1/2" (F)

Manufacturer: Raasm
Pulser Meter For Oil with Inlet-Outlet G 1/2" (F), with Flow Rate of 35 L/Min, Max Voltage of 48V DC and Max Amperage of 0.5 Amps
SKU: 39610
Manufacturer part number: 39610
  • SKU : 39610
  • Brand : Raasm
  • Product Portfolio : Fluid Handling
  • Product Family : Pumps
  • Product Group : DC Pumps
  • Product Class : DC Fuel Pumps
  • Flow Rate : 35 l/min
  • Compatible Fluids : Oils and Similar Products
  • Body Material : Aluminum
  • Gear Material : POM
  • Inlet : G 1/2" (F)
  • Outlet : G 1/2" (F)
  • Max Working Pressure : 70 Bar
  • Burst Pressure : ± 200 Bar
  • Accuracy : ± 0,3%
  • Pulse per Litre : 842
  • Max Supply Voltage : 48 V DC
  • Max Amperage : 0,5 A
  • Max Power : 10 W
  • Net Weight : 0,485 Kg
  • Packing : No. 1 - 0,0015 m3
  • Gross Weight : 0,85 Kg
  • Areas Of Use : Aeronautics, Agriculture, Automotive, Building And Road Construction, Manufacturing Industry
  • Warranty : 12 Months
