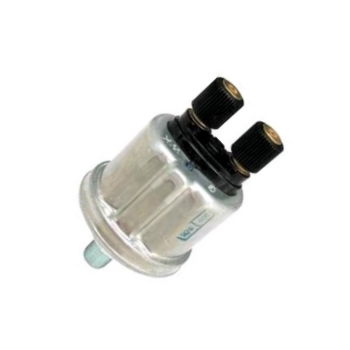

Picture of 362-081-001-002K - Pressure Sender - 0 to 10 Bar - Dual Output Insulated Contact - 1/8"X27 NPTF

362-081-001-002K - Pressure Sender - 0 to 10 Bar - Dual Output Insulated Contact - 1/8"X27 NPTF

Manufacturer: Continental
Pressure Sender - 0 to 10 Bar - Dual Output Insulated Contact - Thread 1/8"X27 NPTF
SKU: 362-081-001-002K
Manufacturer part number: 362-081-001-002K
  • SKU : 362-081-001-002K
  • Brand : Continental
  • Product Portfolio : Switches & Senders
  • Product Family : Senders
  • Product Group : Pressure Senders
  • Thread : 1/8" X 27 NPTF
  • Pressure Range : 0 Bar to 10 Bar
  • Sender Resistance Range : 5 Ohm to 90 Ohm Dual
  • Sensor Signal : 2 Pole Insulated Return
  • Warning Contact : No Warning Contact
  • Optional Warning Contact : VDO A2C59510886 Makepoint Switch
  • Operating Temperature : -25°C to +100°C
  • Pressure Sender Connector : M4AMP Male 6.3 x 0.8mm
  • Pressure Medium : Oil - Fuel - Air
  • Length Thread + Nut (L1) : 19.5mm
  • Thread Length (L2) : 11mm
  • Torque : 30 Nm
  • Maximum Pressure : 30 Bar during 2 seconds
  • Operating Voltage : 6 - 24 V DC
  • Weight : 0.13kg
  • Special Application : For 2 Guages Flybridge
  • Warranty : 12 Months
