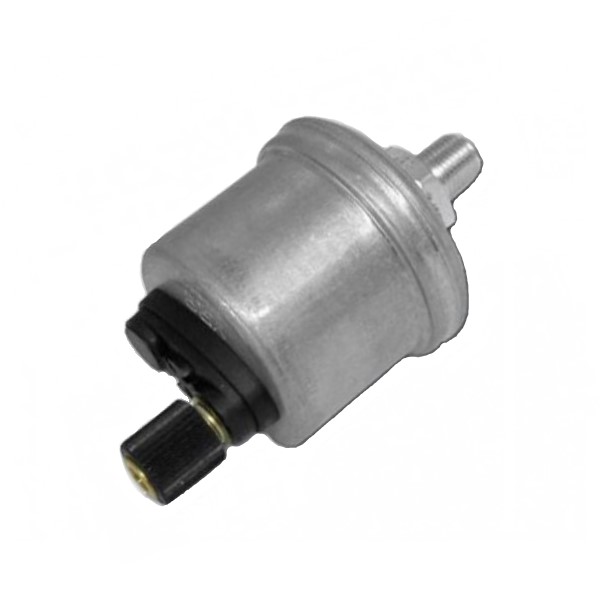

Picture of 360-081-029-059C - Pressure Sender - 0 to 5 Bar - No Warning Contact - M18x1.5

360-081-029-059C - Pressure Sender - 0 to 5 Bar - No Warning Contact - M18x1.5

Manufacturer: Continental
Pressure Sender - 0 to 5 Bar - No Warning Contact - Thread M18x1.5
SKU: 360-081-029-059C
Manufacturer part number: 360-081-029-059C
  • SKU : 360-081-029-059C
  • Brand : Continental
  • Product Portfolio : Switches & Senders
  • Product Family : Senders
  • Product Group : Pressure Senders
  • Thread : M18 X 1.5
  • Pressure Range : 0 Bar to 5 Bar
  • Sender Resistance Range : 10 Ohm to 184 Ohm
  • Sensor Signal : 1 Pole Common Ground
  • Warning Contact : No Warning Contact
  • Optional Warning Contact : VDO A2C59510886 Makepoint Switch
  • Operating Temperature : -25°C to +100°C
  • Pressure Sender Connector : M4 Hexagonal Nut
  • Pressure Medium : Oil - Fuel - Air
  • Length Thread + Nut (L1) : 20.5mm
  • Thread Length (L2) : 12mm
  • Torque : 100 Nm
  • Maximum Pressure : 30 Bar during 2 seconds
  • Operating Voltage : 6 - 24 V DC
  • Weight : 0.14kg
  • Warranty : 12 Months
