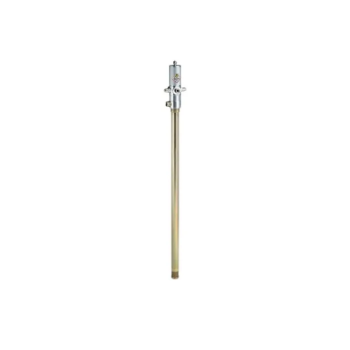

Picture of 35194 - 14L/Min Pneumatic Piston Pump Series 600 For Distributing Oil and Similar with NBR Seals

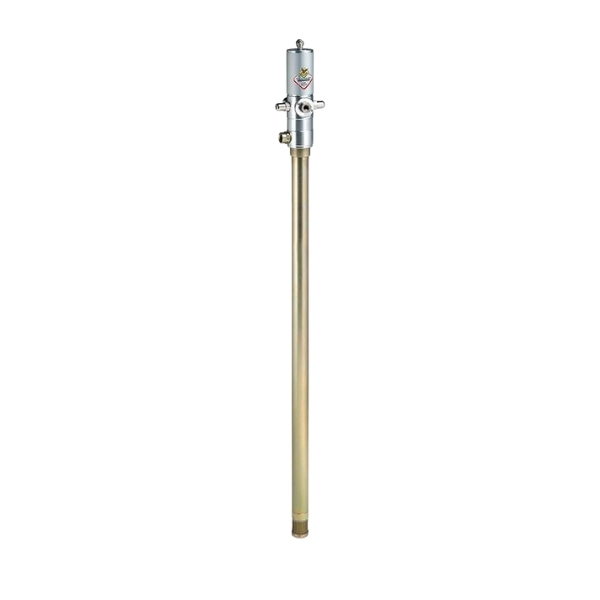

35194 - 14L/Min Pneumatic Piston Pump Series 600 For Distributing Oil and Similar with NBR Seals

Manufacturer: Raasm
Pneumatic Piston Pump Series 600 For Distributing Oil and Similar with a Ratio 3:1 and Flow Rate of 14 L/Min with NBR Seals and Suction Tube of Length 940 mm For 180 - 220 Kg Drums
SKU: 35194
Manufacturer part number: 35194
  • SKU : 35194
  • Brand : Raasm
  • Product Portfolio : Fluid Handling
  • Product Family : Pumps
  • Product Group : Piston Pumps
  • Flow Rate : 14 l/min
  • Ratio : 3:1
  • Compatible Fluids : Oils, Lubricants and Similar
  • Suction Tube Upper Body : Aluminum
  • Suction Tube : Carbon Steel
  • Air Inlet Connection : G 1/4" (F)
  • Fluid Outlet Connection : G 1/2" (F)
  • Air Working Pressure : 6 - 8 Bar
  • Average Air Consumption : 330 l/min
  • Noise Level : 81 dB
  • Max Deliverable Oil Viscosity : SAE 130
  • Suitable For Drums Or Tanks : Suitable For Drums 180 - 220 Kg
  • Packing : No. 1 - 0,020 M3
  • Weight : 6,5 Kg
  • Dimensions : 28.5 cm x 94 cm x 4.2 cm
  • Areas of Use : Aeronautics, Automotive, Building and Road Construction, Manufacturing Industry, Lube Trucks and Transports, Railway Transpor
  • Warranty : 12 Months
