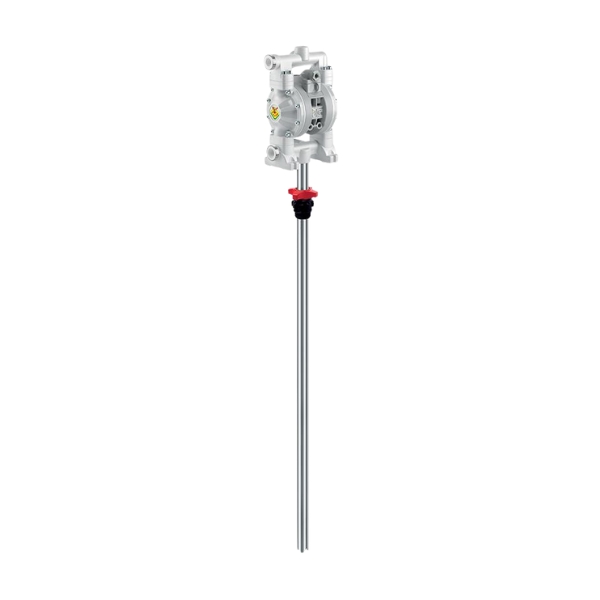

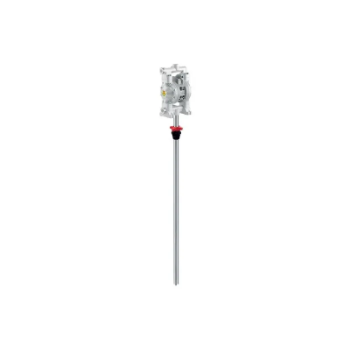

33517 - Diaphragm Pump Series 1/2" 120-Ppb In Polypropylene With Suction Tube In Stainless Steel For Drums 1

Name: 33517 - Diaphragm Pump Series 1/2" 120-Ppb In Polypropylene With Suction Tube In Stainless Steel For Drums 1
SKU: 33517
Availability: InStock

Manufacturer: Raasm

Diaphragm Pump Series 1/2" 120-Ppb In Polypropylene With Suction Tube In Stainless Steel For Drums 1

SKU: 33517

Manufacturer part number: 33517

GTIN: null

SKU : 33517
Brand : Raasm
Product Portfolio : Fluid Technology
Product Family : Pumps
Product Group : Diaphragm Pumps
Flow Rate : 65 l/min
Ratio : 1:1
Max Pressure : 8 Bar
Max Cycles per Minute : 330 cpm
Delivery per Cycle : 0,188 l
Max Suction Lift : Dry Column 4,5 m - Wet Column 7,5 m
Max Size Pumpable Solids : 1,5 mm
Max Working Temperature : 65 °C
Noise Level : 76 dB
Max Air Consumption : 0,89 m3/min
Working Pressure : 2 - 6 Bar
Air Inlet Connection : G 3/8" (F)
Air Outlet Connection (Muffler) : G 3/4" (F)
Fluid Inlet Connection : G 3/4" (F) (G 1" (F) For Drum)
Fluid Outlet Connection : G 1/2" (F)
Suction-Delivery Ball Valve with Spring : Cylindrical Ball Valve
Membranes : EPDM
Balls : Acetal
Seats : Polypropylene and AISI 316 Stainless Steel
Bung Adaptor : P/N 33434
Suction Tube : Length 940 mm - Diameter Ø 34 mm
Packing : No. 2 - 0,034 m3
Gross Weight : 12,55 Kg
Areas of Use : Aeronautics, Agriculture, Automotive, Building and Road Construction, Chemical Industry, Manufacturing Industry, Mining Industry, Lube Trucks and Transports, Shipping and offshore, Railway Transport
Warranty : 12 Months
