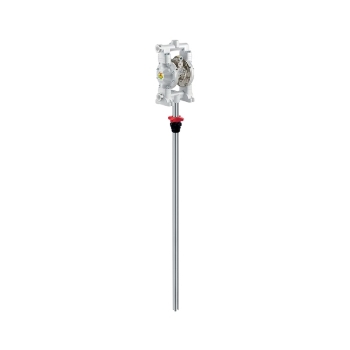

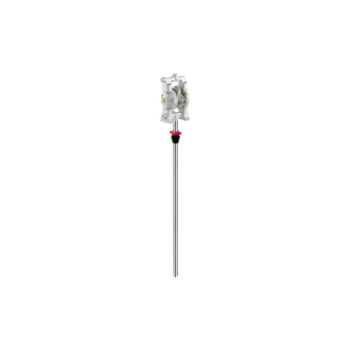

Picture of 33516 - 50L/Min Diaphragm Pump Series APPB-12 in Polypropylene & Aluminium with Suction Tube

33516 - 50L/Min Diaphragm Pump Series APPB-12 in Polypropylene & Aluminium with Suction Tube

Manufacturer: Raasm
Diaphragm Pump Series APPB-12 in Polypropylene & Aluminum with Suction Tube in Stainless Steel For Tanks. Flow Rate of 50L/Min
SKU: 33516
Manufacturer part number: 33516
  • SKU : 33516
  • Brand : Raasm
  • Product Portfolio : Fluid Handling
  • Product Family : Pumps
  • Product Group : Diaphragm Pumps
  • Flow Rate : 50 l/min
  • Ratio : 1:1
  • Compatible Fluids : Antifreeze and Windshield Washing Liquid
  • Internal Flanges and Motor Engine Material : Aluminum
  • Wetted Parts : Polypropylene
  • Ball Valve Material : Teflon®
  • Air Inlet Connection : G 3/8" (F)
  • Fluid Inlet-Outlet Connection : G 3/4" (F) X G 1/2" (F)
  • Working Pressure : 2 - 6 Bar
  • Max Supply Pressure : 8 Bar
  • Average Air Consumption : 400 l/min
  • Noise Level : 75 dB
  • Fluid Temperature : -10 to 65 °C
  • Max Solids Diameter : Ø 1,5 mm
  • Suction-Delivery Ball Valve with Spring : Cylindrical Ball Valve with Spring
  • Bung Adaptor : P/N 33434
  • Suction Tube : Length 1240 mm - Diameter Ø 34 mm
  • Packing : 2 - 0,034 m3
  • Weight : 12,48 Kg
  • Areas of Use : Aeronautics, Agriculture, Automotive, Building and Road Construction, Chemical Industry, Manufacturing Industry, Mining Industry, Lube Trucks and Transports, Shipping and offshore, Railway Transport
  • Warranty : 12 Months
