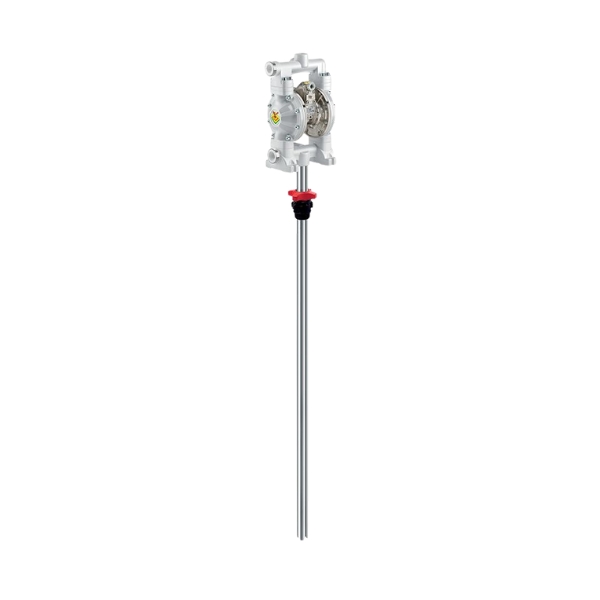

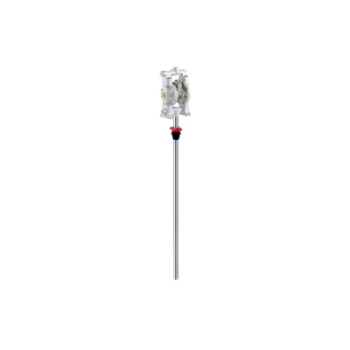

33514 - Diaphragm Pump Series 1/2" 120-Ppab In Polypropylene And Alluminium With Suction Tube In Stainless S

Name: 33514 - Diaphragm Pump Series 1/2" 120-Ppab In Polypropylene And Alluminium With Suction Tube In Stainless S
SKU: 33514
Availability: InStock

Manufacturer: Raasm

Diaphragm Pump Series 1/2" 120-Ppab In Polypropylene And Alluminium With Suction Tube In Stainless S

SKU: 33514

Manufacturer part number: 33514

GTIN: null

SKU : 33514
Brand : Raasm
Product Portfolio : Fluid Technology
Product Family : Pumps
Product Group : Diaphragm Pumps
Flow Rate : 50 l/min
Ratio : 1:1
Compatible Fluids : Antifreeze and Windshield Washing Liquid
Internal Flanges and Motor Engine Material : Aluminum
Wetted Parts : Polypropylene
Ball Valve Material : Teflon®
Air Inlet Connection : G 3/8" (F)
Fluid Inlet-Outlet Connection : G 3/4" (F) X G 1/2" (F)
Working Pressure : 2 - 6 Bar
Max Supply Pressure : 8 Bar
Average Air Consumption : 400 l/min
Noise Level : 75 dB
Fluid Temperature : -10 to 65 °C
Max Solids Diameter : Ø 1,5 mm
Suction-Delivery Ball Valve with Spring : Cylindrical Ball Valve with Spring
Bung Adaptor : P/N 33434
Suction Tube : Length 940 mm - Diameter Ø 34 mm
Packing : 2 - 0,034 m3
Weight : 12,45 Kg
Areas of Use : Aeronautics, Agriculture, Automotive, Building and Road Construction, Chemical Industry, Manufacturing Industry, Mining Industry, Lube Trucks and Transports, Shipping and offshore, Railway Transport
Warranty : 12 Months
