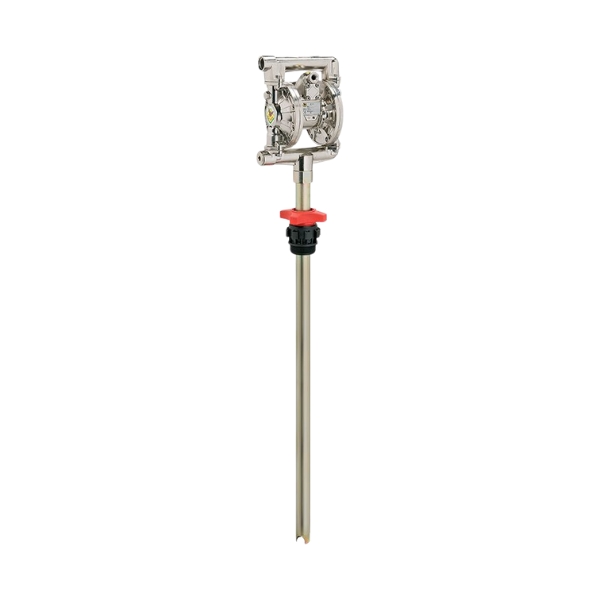

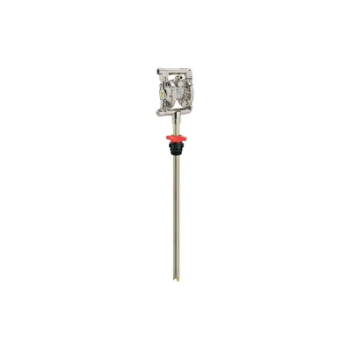

33500 - Diaphragm Pump Series 3/4" In Aluminum With Membrane In Nbr And Suction Tube For Drums 180 ÷ 220 Kg

Name: 33500 - Diaphragm Pump Series 3/4" In Aluminum With Membrane In Nbr And Suction Tube For Drums 180 ÷ 220 Kg
SKU: 33500
Availability: InStock

Manufacturer: Raasm

Diaphragm Pump Series 3/4" In Aluminum With Membrane In Nbr And Suction Tube For Drums 180 ÷ 220 Kg

SKU: 33500

Manufacturer part number: 33500

GTIN: null

SKU : 33500
Brand : Raasm
Product Portfolio : Fluid Technology
Product Family : Pumps
Product Group : Diaphragm Pumps
Flow Rate : 70 l/min
Ratio : 1:1
Compatible Fluids : Water, Mineral-Vegetable Oils, Diesel Fuel
Pump Material : Aluminum
Ball Valve Material : Hytrel®
Air Inlet Connection : G 3/8" (F)
Fluid Inlet-Outlet Connection : Suction Tube Ø 34 Mm - G 3/4" (F)
Air Working Pressure : 2 - 6 Bar
Max Supply Pressure : 8 Bar
Average Air Consumption : 500 l/min
Noise Level : 75 dB
Fluid Temperature : -10 - 90 °C
Max Solids Diameter : Ø 1,5 mm
Suitable for Drums or Tanks : Suitable for Drums 180 - 220 Kg
Suction-Delivery Ball Valve with Spring : Ball Valve with Spring
Packing : No. 2 - 0,040 m3
Weight : 10 Kg
Areas of Use : Aeronautics, Agriculture, Automotive, Building and Road Construction, Chemical Industry, Manufacturing Industry, Mining Industry, Lube Trucks and Transports, Shipping and offshore, Railway Transport
Warranty : 12 Months
