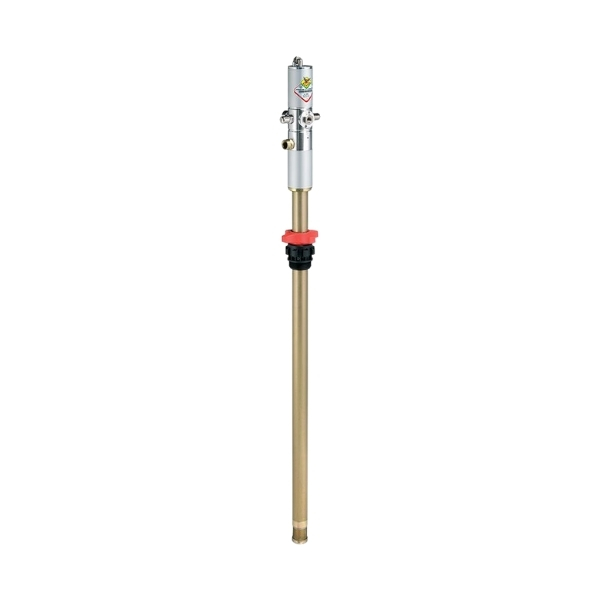

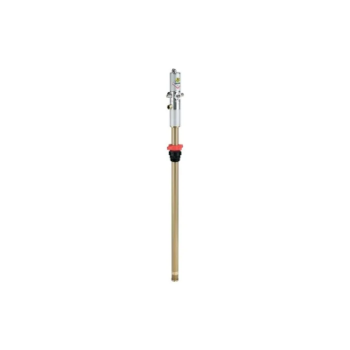

Picture of 33083 - Transfer Pump For Oil And Similar S. 600, R 1:1 - 23 L/Min, With Nbr Seals, Suction Tube 940 Mm With

33083 - Transfer Pump For Oil And Similar S. 600, R 1:1 - 23 L/Min, With Nbr Seals, Suction Tube 940 Mm With

Manufacturer: Raasm
Transfer Pump For Oil And Similar S. 600, R 1:1 - 23 L/Min, With Nbr Seals, Suction Tube 940 Mm With
SKU: 33083
Manufacturer part number: 33083
GTIN: null
  • SKU : 33083
  • Brand : Raasm
  • Product Portfolio : Fluid Technology
  • Product Family : Pumps
  • Product Group : AC Pumps
  • Product Class : AC Fluid & Lube Pumps
  • Flow Rate : 23 l/min
  • Ratio : 1:1
  • Compatible Fluids : Oils, Lubricants and Similar
  • Suction Tube Upper Body : Aluminum
  • Suction Tube : Carbon Steel
  • Air Inlet Connection : G 1/4" (F)
  • Fluid Outlet Connection : G 1/2" (F)
  • Air Working Pressure : 6 - 8 Bar
  • Average Air Consumption : 230 l/min
  • Noise Level : 81 dB
  • Max Deliverable Oil Viscosity : SAE 80
  • Bung Adaptor : Standard
  • Suitable for Drums or Tanks : Suitable for Drums 180 - 220 Kg
  • Packing : No. 1 - 0,020 m3
  • Weight : 6,3 Kg
  • Areas of Use : Aeronautics, Agriculture, Automotive, Building And Road Construction, Manufacturing Industry, Mining Industry, Lube Trucks And Transports, Railway Transpor
  • Warranty : 12 Months
