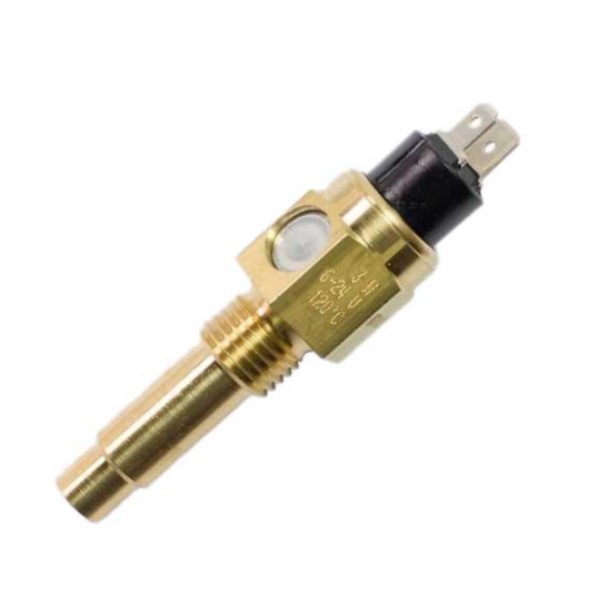

323-803-001-016D - Temperature Sender/Switch - +40°C to +120°C - Switch 94°C - M14X1.5

Name: 323-803-001-016D - Temperature Sender/Switch - +40°C to +120°C - Switch 94°C - M14X1.5
SKU: 323-803-001-016D
Availability: InStock

Manufacturer: Continental

Temperature Sender/Switch - +40°C to +120°C - Switch 94°C - Thread M14X1.5

SKU: 323-803-001-016D

Manufacturer part number: 323-803-001-016D

GTIN: 6007000026669

SKU : 323-803-001-016D
Brand : Continental
Product Portfolio : Switches & Senders
Product Family : Senders
Product Group : Temperature Senders
Thread : M14X1.5
Temperature Measuring Range : +40°C to +120°C
Sender Resistance Range : 287.4 Ohm - 22.7 Ohm
Sensor Signal : 1 Pole Common Ground
Warning Contact : 94°C ± 3°C
Warning Contact Switch Capacity : 1.2 - 3 Watt Non-inductive
Warning Contact Features : Closes With Rising Temperature
Temperature Sender Connector : AMP Male 6.3 x 0.8mm
Warning Contact Connector : AMP Male 4.8 x 0.8mm
Sender Element Length + Thread (L) : 40mm
Sensor Diameter : 10.8mm
Temperature 100 °C > Resistance : 100 °C = 38.47 Ohm ± 2.98 Ohm
Torque : 20 Nm
Temperature Medium : Coolant - Water - Air - Engine Oil - Transmission Oil - Fuel
Minium - Maximum Operating Temperature : -40°C to +150°C
Weight : 0.1kg
Warranty : 12 Months
