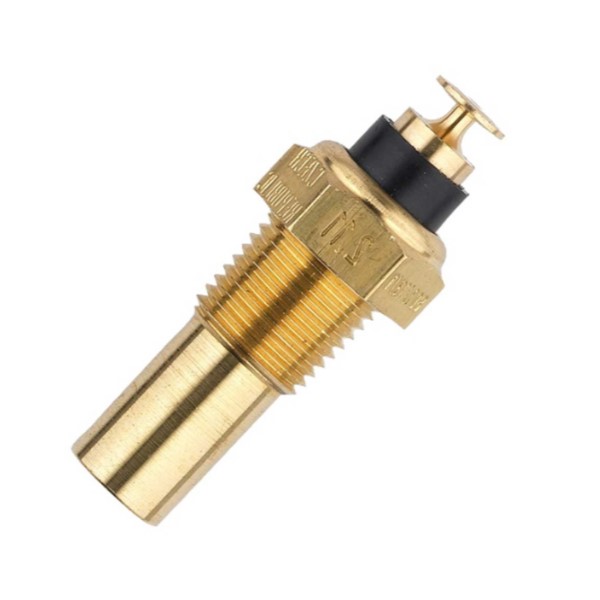

Picture of 323-801-009-001D - Temperature Sender - +50°C to +150°C - Thread 1/8"X27 NPTF

323-801-009-001D - Temperature Sender - +50°C to +150°C - Thread 1/8"X27 NPTF

Manufacturer: Continental
Temperature Sender - +50°C to +150°C - Thread 1/8"X27 NPTF
SKU: 323-801-009-001D
Manufacturer part number: 323-801-009-001D
GTIN: 6007000026584
  • SKU : 323-801-009-001D
  • Brand : Continental
  • Product Portfolio : Switches & Senders
  • Product Family : Senders
  • Product Group : Temperature Senders
  • Thread : 1/8" X 27 NPTF
  • Temperature Measuring Range : +50°C to +150°C
  • Sender Resistance Range : 322.8 Ohm to 18.6 Ohm
  • Sensor Signal : 1 Pole Common Ground
  • Warning Contact : No Warning Contact
  • Optional Warning Contact : VDO A2C59510886 Makepoint Switch
  • Minimum - Maximum Operating Temperature : -40°C to + 180°C
  • Temperature Sender Connector : AMP Male T-model 6.3 x 0.8mm
  • Sender Element Length + Thread (L) : 22mm
  • Sensor Diameter : 8.2mm
  • Torque : 10 Nm
  • Temperature Medium : Coolant - Water - Air - Engine Oil - Transmission Oil - Fuel
  • Operating Voltage : 6 - 24 V DC
  • Weight : 0.5kg
  • Warranty : 12 Months
