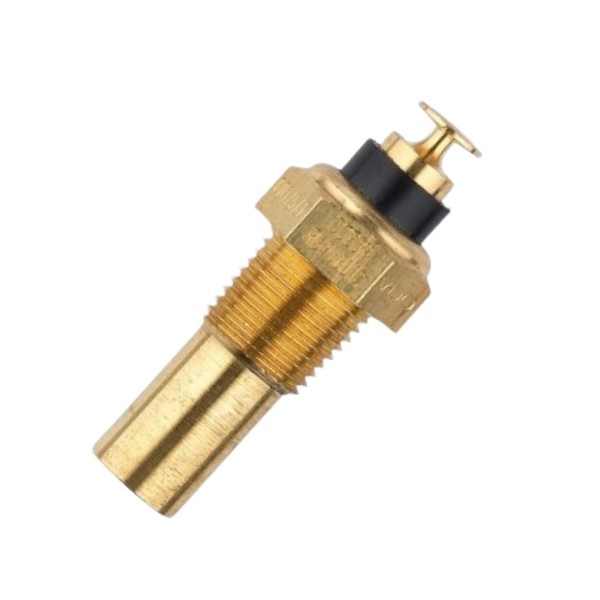

Picture of 323-801-005-001D - Temperature Sender - +40°C to +120°C - Thread 1/8"X27 NPTF

323-801-005-001D - Temperature Sender - +40°C to +120°C - Thread 1/8"X27 NPTF

Manufacturer: Continental
Temperature Sender - +40°C to +120°C - Thread 1/8"X27 NPTF
SKU: 323-801-005-001D
Manufacturer part number: 323-801-005-001D
GTIN: 6007000026577
  • SKU : 323-801-005-001D
  • Brand : Continental
  • Product Portfolio : Switches & Senders
  • Product Family : Senders
  • Product Group : Temperature Senders
  • Thread : 1/8" X 27 NPTF
  • Temperature Measuring Range : +40°C to +120 °C
  • Sender Resistance Range : 287.4 Ohm - 22.7 Ohm
  • Sensor Signal : 1 Pole Common Ground
  • Warning Contact : No Warning Contact
  • Optional Warning Contact : VDO A2C59510886 Makepoint Switch
  • Minimum - Maximum Operating Temperature : -40°C to + 150°C
  • Temperature Sender Connector : AMP Male T-model 6.3 x 0.8mm
  • Sender Element Length + Thread (L) : 22mm
  • Sensor Diameter : 8.5mm
  • Torque : 10 Nm
  • Temperature Medium : Coolant - Water - Air - Engine Oil - Transmission Oil - Fuel
  • Operating Voltage : 6 - 24 V DC
  • Weight : 0.21kg
  • Warranty : 12 Months
