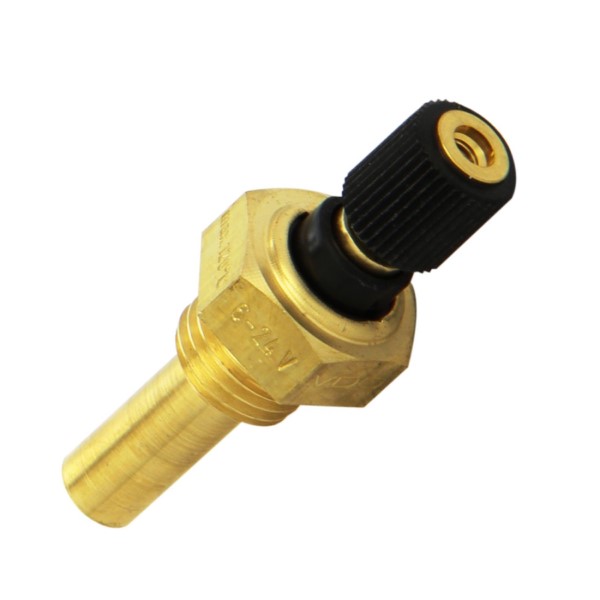

323-801-001-026N - Temperature Sender - +40°C to +120°C - M14X1.5

Name: 323-801-001-026N - Temperature Sender - +40°C to +120°C - M14X1.5
SKU: 323-801-001-026N
Availability: InStock

Manufacturer: Continental

Temperature Sender - +40°C to +120°C - Thread M14X1.5

SKU: 323-801-001-026N

Manufacturer part number: 323-801-001-026N

GTIN: 6007000026515

SKU : 323-801-001-026N
Brand : Continental
Product Portfolio : Switches & Senders
Product Family : Senders
Product Group : Temperature Senders
Thread : M14X1.5
Temperature Measuring Range : +40°C to +120°C
Sender Resistance Range : 287.4 Ohm to 22.7 Ohm
Sensor Signal : 1 Pole Common Ground
Warning Contact : No Warning Contact
Optional Warning Contact : VDO A2C59510886 Makepoint Switch
Minimum - Maximum Operating Temperature : -40°C to +150°C
Temperature Sender Connector : M4 Plastic Knurled Nut
Sender Element Length + Thread (L) : 29mm
Sensor Diameter : 9mm
Torque : 20 Nm
Temperature Medium : Coolant - Water - Air - Engine Oil - Transmission Oil - Fuel
Temperature 100 °C > Resistance : 100 °C = 38.47 Ohm ± 2.98 Ohm
Operating Voltage : 6 - 24 V DC
Weight : 0.4kg
Warranty : 12 Months

Continental
