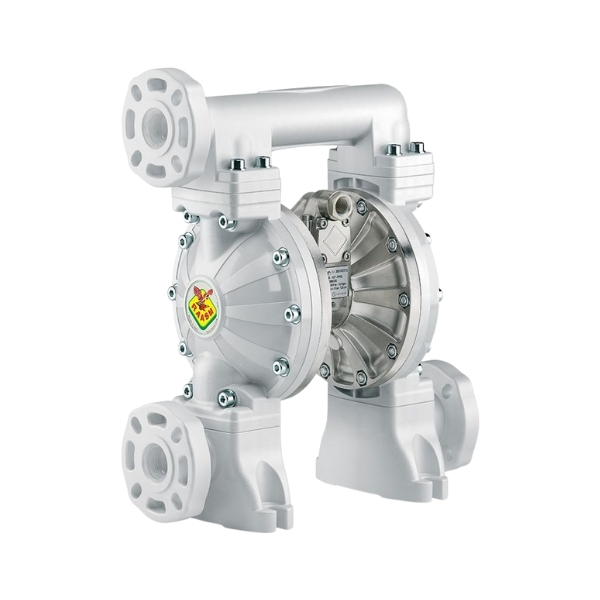

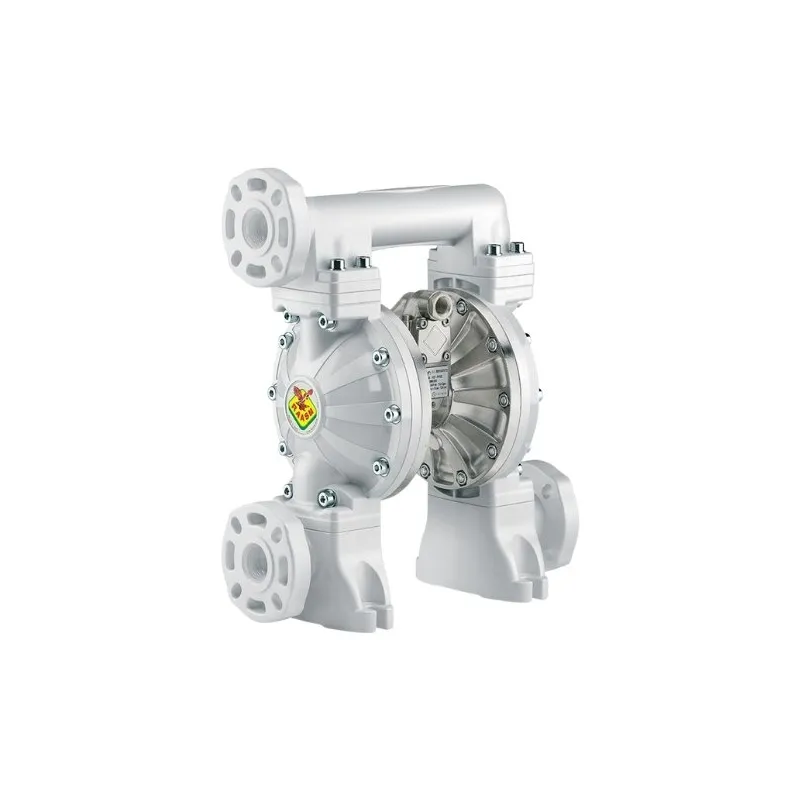

Picture of 2B7/26117HHI - Dual Inlet Diaphragm Pump Series 1" 1000-Ppab In Polypropylene And Aluminum With Membranes In Hytrel

2B7/26117HHI - Dual Inlet Diaphragm Pump Series 1" 1000-Ppab In Polypropylene And Aluminum With Membranes In Hytrel

Manufacturer: Raasm
Dual Inlet Diaphragm Pump Series 1" 1000-Ppab In Polypropylene And Aluminum With Membranes In Hytrel
SKU: 2B7/26117HHI
Manufacturer part number: 2B7/26117HHI
GTIN: null
  • SKU : 2B7/26117HHI
  • Brand : Raasm
  • Product Portfolio : Fluid Technology
  • Product Family : Pumps
  • Product Group : Diaphragm Pumps
  • Flow Rate : 170 l/min
  • Ratio : 1:1
  • Max Pressure : 8 Bar
  • Max Cycles per Minute : 300 cpm
  • Delivery per Cycle : 0,590 l
  • Max Suction Lift : Dry Column 5 m - Wet Column 7,5 m
  • Max Size Pumpable Solids : 3 mm
  • Max Working Temperature : 65 °C
  • Noise Level : 75 dB
  • Max Air Consumption : 1,60 m3/min
  • Air Working Pressure : 2 - 6 Bar
  • Air Inlet Connection : G 3/8" (F)
  • Air Outlet Connection (Muffler) : G 1/2" (F)
  • Fluid Inlet Connection : Dual Inlet ANSI 150 - DIN PN 10 - JIS 10K 1" (25 mm) Proneness to G 1.1/4" (F) Thread
  • Fluid Outlet Connection : ANSI 150 - DIN PN 10 - JIS 10K 1" (25mm) Proneness to G 1.1/4" (F) Thread
  • Balls For Inlet : Ball Valve
  • Membranes : Hytrel®
  • Balls : Hytrel®
  • Seats : AISI 316 Stainless Steel
  • Packing : No. 1 - 0,03 m3
  • Gross Weight : 12,1 Kg
  • Areas of Use : Aeronautics, Agriculture, Automotive, Building and Road Construction, Chemical Industry, Manufacturing Industry, Mining Industry, Lube Trucks and Transports, Shipping and offshore, Railway Transport
  • Warranty : 12 Months
