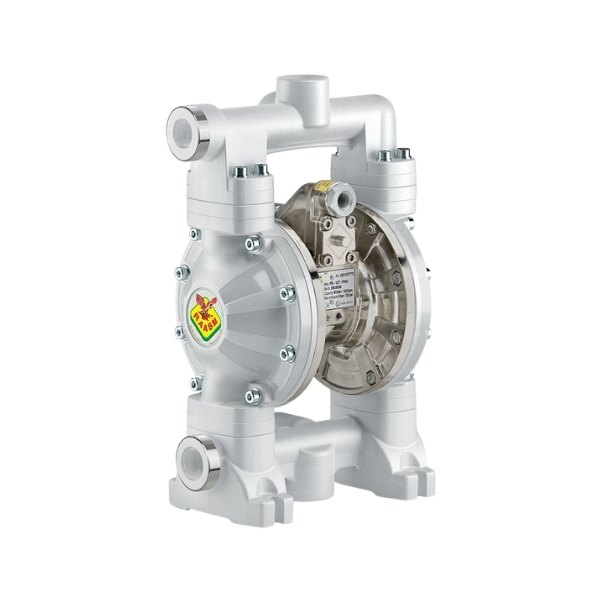

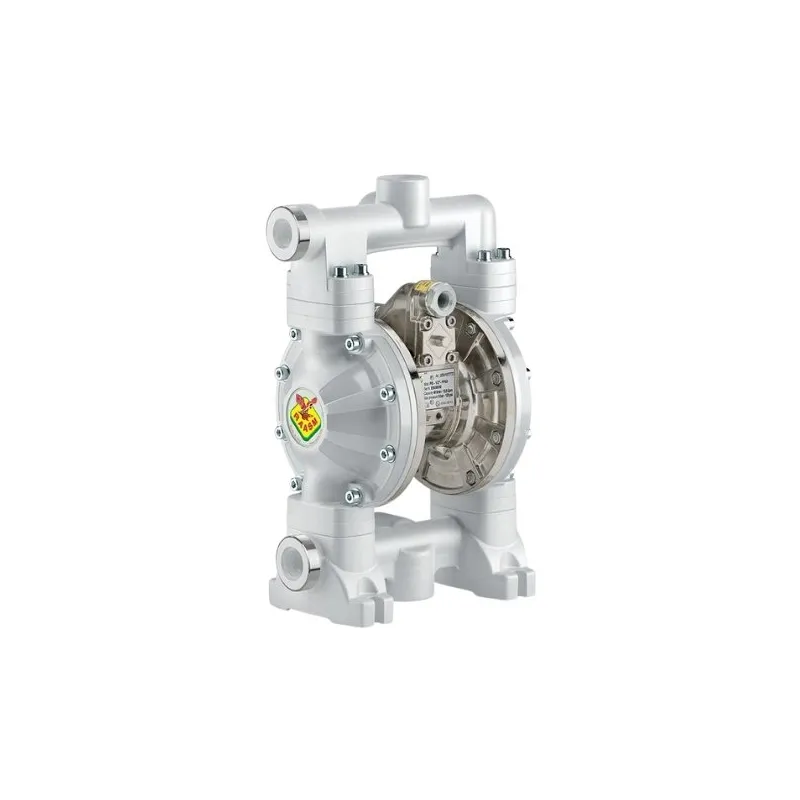

Picture of 2B3/16117TT52 - Diaphragm Pump Series 1/2" 120-Ppab With Springs, In Polypropylene, With Membrane In Ptfe, Stainless

2B3/16117TT52 - Diaphragm Pump Series 1/2" 120-Ppab With Springs, In Polypropylene, With Membrane In Ptfe, Stainless

Manufacturer: Raasm
Diaphragm Pump Series 1/2" 120-Ppab With Springs, In Polypropylene, With Membrane In Ptfe, Stainless
SKU: 2B3/16117TT52
Manufacturer part number: 2B3/16117TT52
GTIN: null
  • SKU : 2B3/16117TT52
  • Brand : Raasm
  • Product Portfolio : Fluid Technology
  • Product Family : Pumps
  • Product Group : Diaphragm Pumps
  • Flow Rate : 50 l/min
  • Ratio : 1:1
  • Compatible Fluids : Antifreeze and Windshield Washing Liquid
  • Motor and Inside Flanges Material : Aluminum
  • Wetted Parts : Polypropylene
  • Ball Valve Material : Teflon®
  • Air Inlet Connection : G 3/8" (F)
  • Fluid Inlet-Outlet Connection : G 3/4" (F) X G 1/2" (F)
  • Air Working Pressure : 2 - 6 Bar
  • Max Supply Pressure : 8 Bar
  • Average Air Consumption : 400 l/min
  • Noise Level : 75 dB
  • Fluid Temperature : -10 to 65 °C
  • Max Size Pumpable Solids : 1,5 mm
  • Suction-Delivery Ball Valve With Spring : Cylindrical Ball Valve with Spring
  • Packing : No. 1 - 0,015 m3
  • Weight : 7,5 Kg
  • Certification : CE and Atex (II 3 GD)
  • Areas of Use : Aeronautics, Agriculture, Automotive, Building and Road Construction, Chemical Industry, Manufacturing Industry, Mining Industry, Lube Trucks and Transports, Shipping and offshore, Railway Transport
  • Warranty : 12 Months
