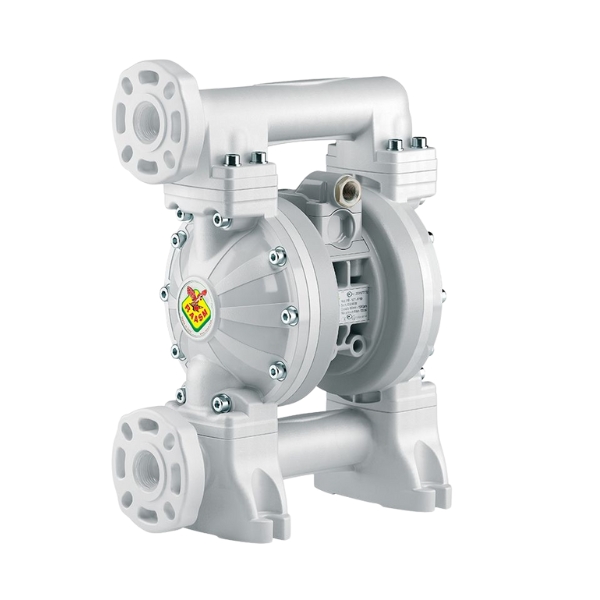

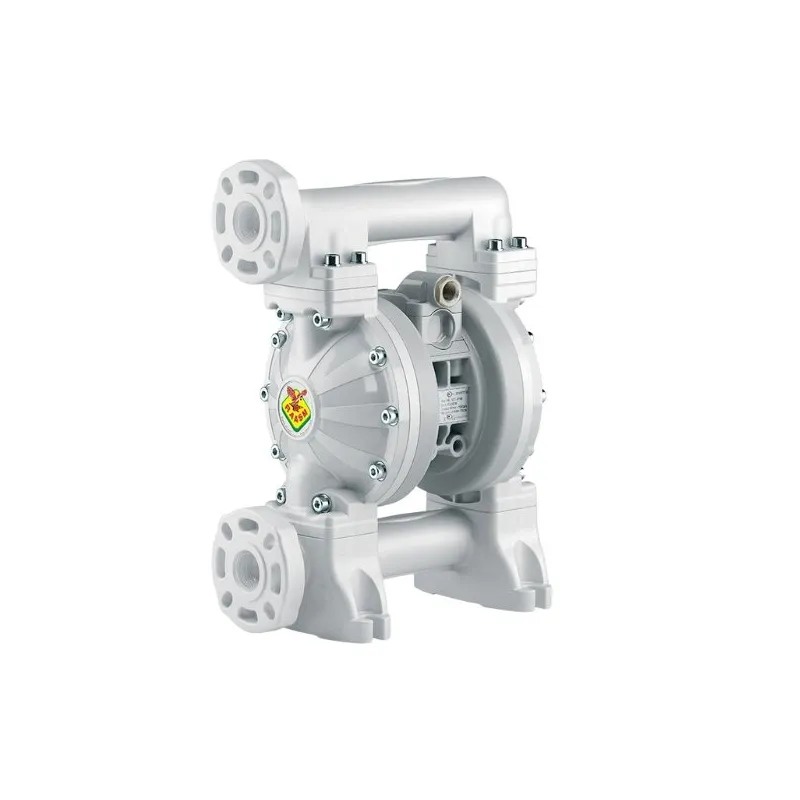

Picture of 2A4/2677SSI - Diaphragm Pump Series 1" 1000-Ppb In Polypropylene With Membranes In Santoprene™, Seats And Balls In

2A4/2677SSI - Diaphragm Pump Series 1" 1000-Ppb In Polypropylene With Membranes In Santoprene™, Seats And Balls In

Manufacturer: Raasm
Diaphragm Pump Series 1" 1000-Ppb In Polypropylene With Membranes In Santoprene™, Seats And Balls In
SKU: 2A4/2677SSI
Manufacturer part number: 2A4/2677SSI
GTIN: null
  • SKU : 2A4/2677SSI
  • Brand : Raasm
  • Product Portfolio : Fluid Technology
  • Product Family : Pumps
  • Product Group : Diaphragm Pumps
  • Flow Rate : 145 l/min
  • Ratio : 1:1
  • Max Pressure : 8 Bar
  • Max Cycles per Minute : 270 cpm
  • Delivery per Cycle : 0,540 l
  • Max Suction Lift : Dry Column 5 m - Wet Column 7,5 m
  • Max Size Pumpable Solids : 3 mm
  • Max Working Temperature : 65 °C
  • Noise Level : 78 dB
  • Max Air Consumption : 1,1 m3/min
  • Air Working Pressure : 2 - 6 Bar
  • Air Inlet Connection : G 3/8" (F)
  • Air Outlet Connection (Muffler) : G 3/4" (F)
  • Fluid Inlet Connection : ANSI 150 - DIN PN 10 - JIS 10K 1" (25 mm) Proneness to G 1.1/4" (F) Thread
  • Fluid Outlet Connection : ANSI 150 - DIN PN 10 - JIS 10K 1" (25mm) Proneness to G 1.1/4" (F) Thread
  • Balls For Inlet : Ball Valve
  • Membranes : Santoprene™
  • Balls : Santoprene™
  • Seats : AISI 316 Stainless Steel
  • Packing : No. 1 - 0,03 m3
  • Gross Weight : 9,6 Kg
  • Areas of Use : Aeronautics, Agriculture, Automotive, Building and Road Construction, Chemical Industry, Manufacturing Industry, Mining Industry, Lube Trucks and Transports, Shipping and offshore, Railway Transport
  • Warranty : 12 Months
