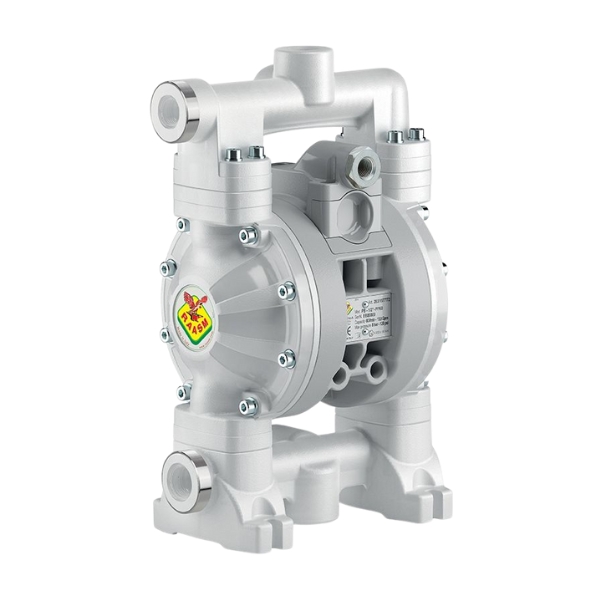

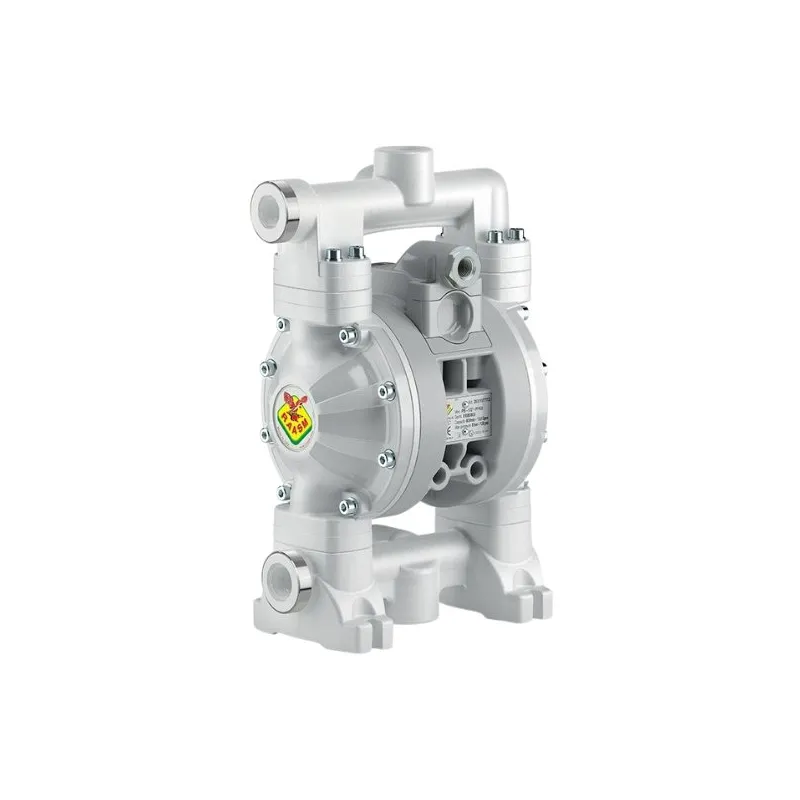

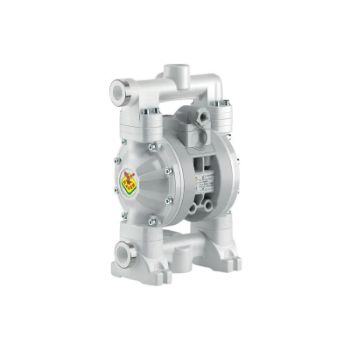

Picture of 2A3/1677EA5 - Diaphragm Pump Series 1/2" 120-Ppbb In Polypropylene With Membranes In Epdm, Seats And Balls In Stai

2A3/1677EA5 - Diaphragm Pump Series 1/2" 120-Ppbb In Polypropylene With Membranes In Epdm, Seats And Balls In Stai

Manufacturer: Raasm
Diaphragm Pump Series 1/2" 120-Ppbb In Polypropylene With Membranes In Epdm, Seats And Balls In Stai
SKU: 2A3/1677EA5
Manufacturer part number: 2A3/1677EA5
GTIN: null
  • SKU : 2A3/1677EA5
  • Brand : Raasm
  • Product Portfolio : Fluid Technology
  • Product Family : Pumps
  • Product Group : Diaphragm Pumps
  • Fluids : Waste Oil, Fresh Oil, Antifreeze, Windshield Fluid, Water, Diesel Fuel, Adblue®, Paint, Cleaning Detergent
  • Areas of Use : Aeronautic, Agriculture, Automotive, Lube Truck and Industrial Vehicle, Building Industry and Road Construction, Railway Transport, Manufacturing Industry, Mining, Chemical Industry
  • Flow rate : 65 l/min
  • Ratio : 1:1
  • Max pressure : 8 bar
  • Max Cycles per Minute : 350 CPM
  • Delivery per Cycle : 0,188 l
  • Max Suction Lift : Dry Column 4,5 m - Wet Column 7,5 m
  • Max Size Pumpable Solids : 1,5 mm
  • Max Working Temperature : 65 °C
  • Noise level : 76 dB
  • Max Air Consumption : 0,89 m3/min
  • Air Working Pressure : 2 - 6 bar
  • Air inlet connection : G 3/8" (f)
  • Air outlet connection (muffler) : G ¾" (f)
  • Fluid Inlet Connection : G ¾" (f) (G 1" (f) for drum)
  • Fluid Outlet Connection : G 1/2" (f)
  • Balls for Inlet : Cylindrical Ball Valve
  • Membranes : EPDM
  • Balls : Acetal
  • Seats : Polypropylene and AISI 316 Stainless Steel
  • Packing : No. 1 - 24x19x40 cm
  • Gross weight : 5,8 kg
  • Warranty : 12 Months
