Picture of 232-011-005-015D - Temperature Switch - Switchpoint 130°C ± 10°C - M10X1.5

232-011-005-015D - Temperature Switch - Switchpoint 130°C ± 10°C - M10X1.5

Manufacturer: Continental
Temperature Switch - Switchpoint 130°C ± 10°C - Thread M10X1.5
SKU: 232-011-005-015D
Manufacturer part number: 232-011-005-015D
  • SKU : 232-011-005-015D
  • Brand : Continental
  • Product Portfolio : Switches & Senders
  • Product Family : Switches
  • Product Group : Temperature Switches
  • Thread : M10 X 1.5
  • Temperature Switchpoint : 130°C ± 10°C
  • Maximum Operating Temperature : 160°C
  • Pressure Switch : 1 Pole Common Ground
  • Switch Function : Contact Closes When Temperature > 130°C
  • Contact Response : Slow
  • Temperature Switch Capacity : Maximum 1.2 - 3 Watt Non-inductive
  • Temperature Switch Connector : M4 Hex Nut

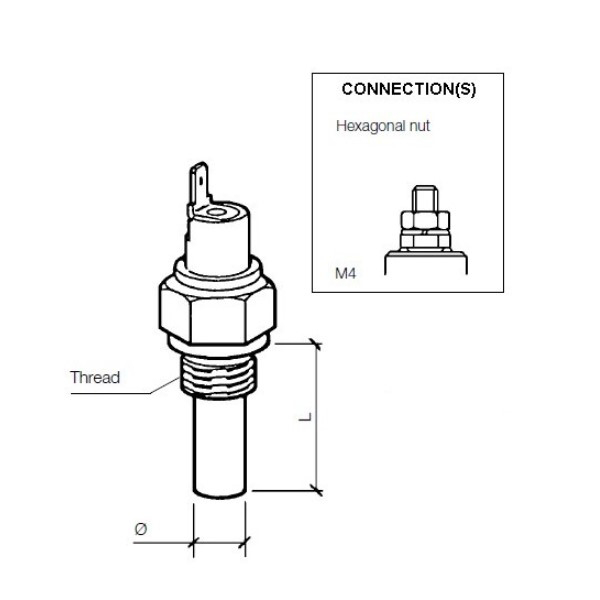

  • Switch Element Length + Thread (L) : 38.5mm
  • Sensor Diameter : 6.9mm
  • Operating Voltage : 6 - 24 V Dc
  • Weight 0.1kg
  • Warranty : 12 Months
