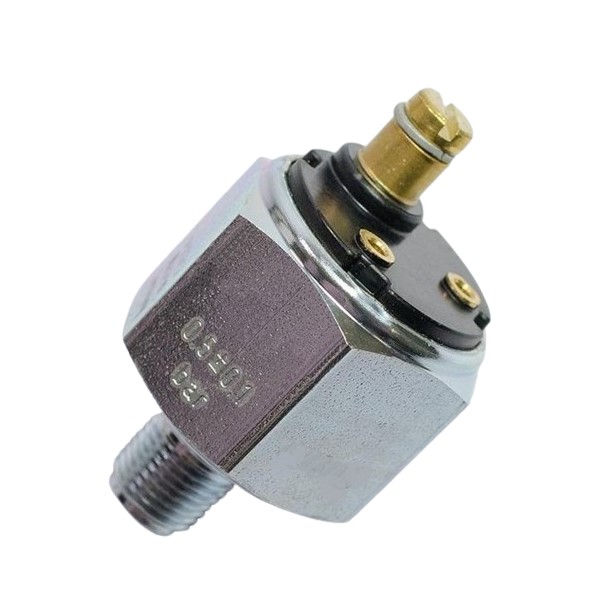

Picture of 230-112-001-002C - Pressure Switch - 0 to 12 Bar - Switchpoint 10.00 PSI - 1/8"X27 NPTF

230-112-001-002C - Pressure Switch - 0 to 12 Bar - Switchpoint 10.00 PSI - 1/8"X27 NPTF

Manufacturer: Continental
Pressure Switch - 0 - 12 Bar - Switchpoint 10.00 PSI - Thread 1/8"X27 NPTF
SKU: 230-112-001-002C
Manufacturer part number: 230-112-001-002C
GTIN: 6007000018718
  • SKU : 230-112-001-002C
  • Brand : Continental
  • Product Portfolio : Switches & Senders
  • Product Family : Switches
  • Product Group : Pressure Switches
  • Thread : 1/8" X 27 NPTF
  • Pressure Range : 0 Bar to 12 Bar
  • Pressure Switchpoint : 0.68 ± 0.13 Bar
  • Contact : Normally Open
  • Pressure Switch Signal : 1 Pole Common Ground
  • Switch Function : Contact Closes When Pressure > 10.00 PSI
  • Contact Response : Slow
  • Pressure Switch Capacity : Maximum 5 Watt Non-Inductive
  • Pressure Switch Connector : M4 Screw
  • Length Thread + Nut (L1) : 26mm
  • Thread Length (L2) : 11mm
  • Torque : 30 Nm
  • Maximum Pressure : 30 Bar during 2 seconds
  • Housing : Hex 27mm - Contact Chamber Vented
  • Operating Voltage : 6 - 24 V DC
  • Weight : 0.08kg
  • Warranty : 12 Months
