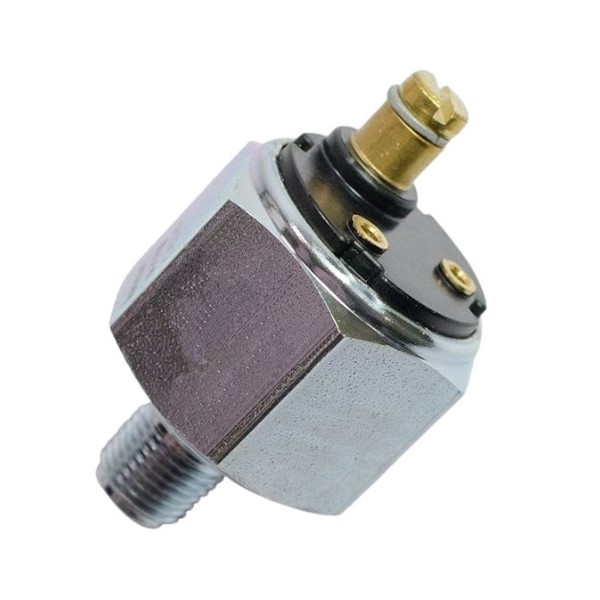

Picture of 230-112-001-001C - Pressure Switch - 0 to 12 Bar - Switchpoint 1.00 ± 0.20 Bar - M10X1 Conical Short

230-112-001-001C - Pressure Switch - 0 to 12 Bar - Switchpoint 1.00 ± 0.20 Bar - M10X1 Conical Short

Manufacturer: Continental
Pressure Switch - Pressure Switch - 0 to 12 Bar - Switchpoint 1.00 ± 0.20 Bar - Thread M10X1 Conical Short
SKU: 230-112-001-001C
Manufacturer part number: 230-112-001-001C
  • SKU : 230-112-001-001C
  • Brand : Continental
  • Product Portfolio : Switches & Senders
  • Product Family : Switches
  • Product Group : Pressure Switches
  • Thread : M10 X 1 Conical Short
  • Pressure Range : 0 Bar - 12 Bar
  • Pressure Switchpoint : 1.00 Bar ± 0.20 Bar
  • Contact : Normally Open
  • Pressure Switch Signal : 1 Pole Common Ground
  • Switch Function : Contact Closes When Pressure > 1.00 Bar
  • Contact Response : Slow
  • Pressure Switch Capacity : Maximum 5 Watt Non-Inductive
  • Pressure Switch Connector : M4 Screw
  • Length Thread + Nut (L1) : 26mm
  • Thread Length (L2) : 11mm
  • Torque : 30 Nm
  • Maximum Pressure : 30 Bar during 2 seconds
  • Housing : Hex 27mm - Contact Chamber Vented
  • Operating Voltage : 6 - 24 V DC
  • Weight : 0.08kg
  • Warranty : 12 Months
