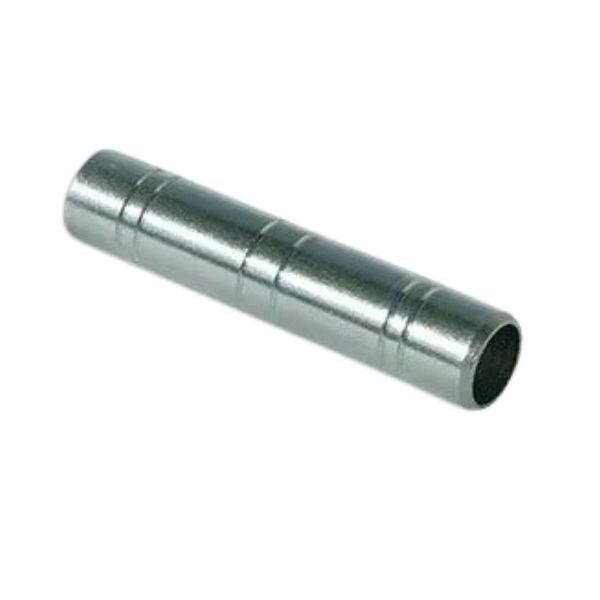

Picture of 070800 - Connector Straight Line Stem - Push-in Fittings - 8mm Stem To 8mm Stem - Brass

070800 - Connector Straight Line Stem - Push-in Fittings - 8mm Stem To 8mm Stem - Brass

Manufacturer: Pneumax
Connector Straight Line Stem - Push-in Fittings - 8mm Stem To 8mm Stem - Brass
SKU: 070800
Manufacturer part number: 070800
  • SKU : 070800
  • Brand : Pneumax
  • Product Portfolio : Pneumatics
  • Product Family : Fittings & Adaptors
  • Product Group : Push-in Fittings
  • Product Class : Push-In - Straight
  • Family Code : 07
  • Join : Stem to Stem
  • Material : Brass
  • From : 8mm Stem
  • To : 8mm Stem
  • Fluid : Compressed Air
  • Operating Temperature : -20 to +70 degrees C
  • Suggested Tubes : TPU (Polyurethane), PA11/PA12 (Polyamide), TPE (Polyethilene), TPA (Polyurethane/Copolyester)
  • Applications : Pneumatic circuits, low pressure hydraulic applications, according to DIN 3861-3870 norms. Suitable for vacuum applications.
  • Protection Rating : IP68
  • Temperatures and pressures usually depend by the technical features of the employed tubes, anyway it is suggested a limit working pressure of 15 bar and a temperature range between -20°C and +70°C
  • Tube Tolerances : Diam. between 4 and 10 mm +/- 0,05 Diam. from 12 mm +/- 0,1
  • Warranty : 12 Months
